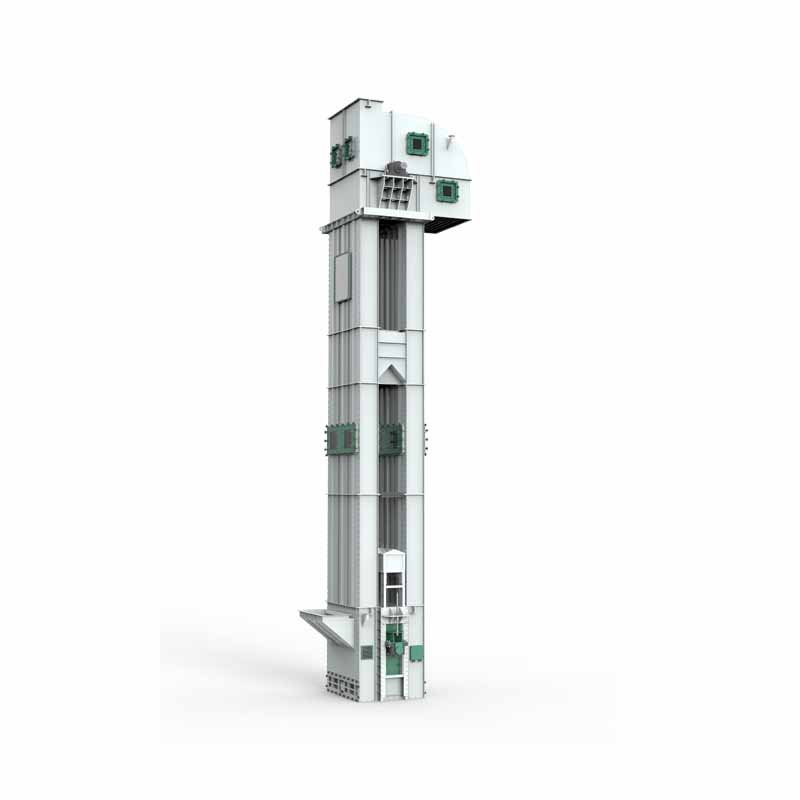

TDG/THG High Efficient Vertical Bucket Elevator Conveyor for Mining & Cement
1. Product OverviewTDG & THG series high-efficiency bucket elevators are upgraded optimized models o
- TDG160 / 200 / 250 / 315 / 400 / 500 / 630 / 800 / 1000 / 1250 / 1600THG250 / 315 / 400 / 500 / 630 / 800 / 1000 / 1200 / 1400 / 1600
- TDG 24 ~ 1542 m³/h THG 25 ~ 1600 m³/h
- TDG: Up to 80 m THG: Up to 60 m
- TDG: Steel cord reinforced rubber belt THG: Alloy steel high-strength ring chain
- TDG: 1.0 ~ 1.25 m/s THG: 0.8 ~ 1.0 m/s
- TDG: Centrifugal discharge THG: Mixed discharge
- TDG: ≤ 40 mm THG: ≤ 60 mm
- TDG: 1.5 ~ 90 kW THG: 2.2 ~ 110 kW
- Q235 Carbon Steel (stainless steel optional)
- TDG: Cement, mining, chemical, grain, building materials THG: Cement clinker, mining, coal, heavy abrasive bulk materials
- Information
1. Product Overview
TDG & THG series high-efficiency bucket elevators are upgraded optimized models of traditional TD/TH belt & chain bucket elevators. They are vertical continuous conveying equipment for bulk granular, powdery and small lump materials, with advantages of large capacity, high lifting height, stable operation, low energy consumption, good sealing and long service life.
· TDG: Belt-driven type (EP rubber belt / steel cord belt as traction component)
· THG: Chain-driven type (high-strength ring chain as traction component)
2. Core Difference Between TDG & THG
Item | TDG Bucket Elevator | THG Bucket Elevator |
Traction Part | Rubber EP belt / steel wire belt | High-strength mining ring chain (GB/T2718 standard) |
Max Material Temperature | ≤120℃ (heat-resistant belt) | ≤250℃ |
Unloading Mode | Centrifugal unloading | Gravity & mixed unloading |
Capacity Range | 24 ~ 817 m³/h | 45 ~ 1542 m³/h |
Max Lifting Height | Up to 50m | Up to 80m |
Material Adaptability | Dry, loose, low-abrasion flowable materials | Heavy, high-temperature, abrasive, slightly viscous materials |
3. Working Principle
The whole machine runs in closed circulation. Material enters the bottom inlet, scooped by rotating buckets; buckets lift materials vertically to the head drive section.
· TDG: Under centrifugal force, materials are thrown out into discharge chute (centrifugal discharge).
· THG: Under gravity & composite force, materials smoothly discharge (gravity mixed discharge).Empty buckets return to the bottom section cyclically to complete continuous vertical lifting conveying.
4. Main Structure Composition
Complete set consists of head section, middle casings, bottom section, running parts (belt/chain + buckets), drive unit, tension device & safety protection devices.
1. Head Section: Drive pulley/sprocket, discharge outlet, vertical shaft hard gear reducer, backstop, anti-reverse mechanism.

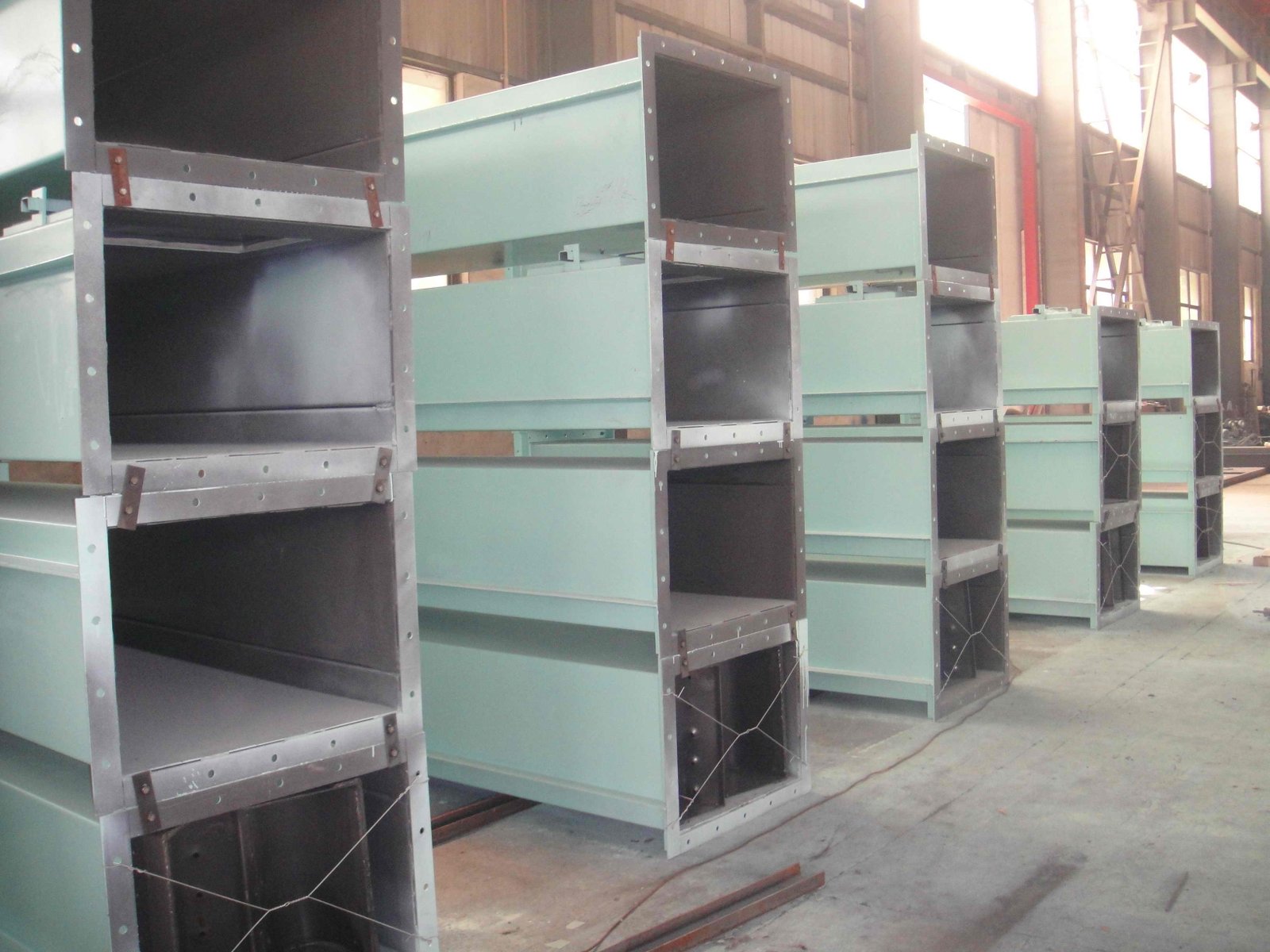

2. Middle Casing: Fully sealed sectional steel casing, dust-proof, with inspection access doors, reinforced frame structure.
3. Bottom Section: Feed inlet, tail pulley/sprocket, automatic weight tensioning device, anti-deviation sensor, material level detector.
4. Running Components
o TDG: High-strength EP heat-resistant belt, firmly fixed buckets.
o THG: Heavy-duty ring chain, high-load bucket mounting structure.
5. Drive System: Motor + hard tooth surface gearbox + fluid coupling, soft start, compact transmission, low vibration.
6. Safety Devices: Belt/chain deviation alarm, overspeed protection, backstop (prevent reverse falling), material level interlock control.
5. Bucket Types & Application
Two optimized bucket series for different working conditions:
· AH/AD Deep Bucket: Suitable for dry, loose, good-flow materials (cement, coal, gravel, grain, powder). Centrifugal discharge preferred.
· BH/BD Medium-deep Bucket: Suitable for slightly moist, poor-flow, slightly viscous materials (sand, fertilizer, chemical powder, aggregate). Mixed/gravity discharge preferred.
7. Technical Specifications
TDG
| Model | Bucket Width(mm) | AH Bucket Capacity(L) | BH Bucket Capacity(L) | Capacity (m³/h) AH | Capacity(m³/h) BH | Bucket Pitch(mm) | Belt Width (mm) | Max Lifting Height(m) | Speed (m/s) |
| TDG160 | 160 | 2.6 | 1.9 | 24 | 18 | 260 | 200 | 50 | 0.93 |
| TDG200 | 200 | 4.1 | 2.9 | 38 | 29 | 300 | 250 | 50 | 0.93 |
| TDG250 | 250 | 6.5 | 4.6 | 57 | 42 | 325 | 300 | 50 | 1.04 |
| TDG315 | 315 | 10 | 7.4 | 86 | 65 | 360 | 380 | 50 | 1.04 |
| TDG400 | 400 | 16 | 12 | 135 | 102 | 420 | 480 | 50 | 1.17 |
| TDG500 | 500 | 25 | 19 | 205 | 155 | 460 | 600 | 50 | 1.17 |
| TDG630 | 630 | 40 | 29 | 320 | 240 | 520 | 720 | 50 | 1.32 |
| TDG800 | 800 | 64 | 47 | 475 | 355 | 560 | 900 | 45 | 1.31 |
| TDG1000 | 1000 | 102 | 74 | 715 | 530 | 630 | 1120 | 40 | 1.47 |
| TDG1250 | 1250 | 161 | 117 | 1120 | 840 | 710 | 1400 | 40 | 1.47 |
| TDG1600 | 1600 | 255 | 184 | 1542 | 1150 | 800 | 1750 | 35 | 1.47 |
THG
| Model | Bucket Width(mm) | AH Bucket Capacity(L) | BH Bucket Capacity(L) | Capacity (m³/h) AH | Capacity (m³/h) BH | Bucket Pitch(mm) | Chain Spec | Max Lifting Height(m) | Speed(m/s) |
| THG160 | 160 | 2.6 | 1.9 | 28 | 21 | 280 | 10×36 | 80 | 0.93 |
| THG200 | 200 | 4.1 | 2.9 | 45 | 34 | 320 | 12×45 | 80 | 0.93 |
| THG250 | 250 | 6.5 | 4.6 | 68 | 51 | 350 | 14×50 | 80 | 1.04 |
| THG315 | 315 | 10 | 7.4 | 102 | 77 | 400 | 16×56 | 80 | 1.04 |
| THG400 | 400 | 16 | 12 | 160 | 120 | 450 | 18×63 | 80 | 1.17 |
| THG500 | 500 | 25 | 19 | 245 | 185 | 500 | 20×70 | 80 | 1.17 |
| THG630 | 630 | 40 | 29 | 385 | 290 | 560 | 24×86 | 75 | 1.32 |
| THG800 | 800 | 64 | 47 | 570 | 425 | 630 | 26×100 | 70 | 1.31 |
| THG1000 | 1000 | 102 | 74 | 860 | 645 | 710 | 30×120 | 65 | 1.47 |
| THG1250 | 1250 | 161 | 117 | 1350 | 1010 | 800 | 34×140 | 60 | 1.47 |
| THG1600 | 1600 | 255 | 184 | 1542 | 1150 | 900 | 38×160 | 55 | 1.47 |
8. Product Advantages
1. Higher capacity & greater lifting height than old TD/TH series, optimized bucket speed & structure efficiency.
2. Excellent airtight sealing, minimal dust leakage, environmental protection, suitable for fine powder material conveying.
3. Stable transmission, low failure rate, few vulnerable parts, low maintenance cost.
4. Automatic heavy hammer tensioning at tail, auto-belt/chain centering, anti-deviation function, long service life of traction parts.
5. Complete safety interlock: backstop, deviation protection, overspeed, material level control, safe continuous operation.
6. Modular sectional casing, flexible lifting height customization, convenient on-site installation and transportation.
9. Application Industries

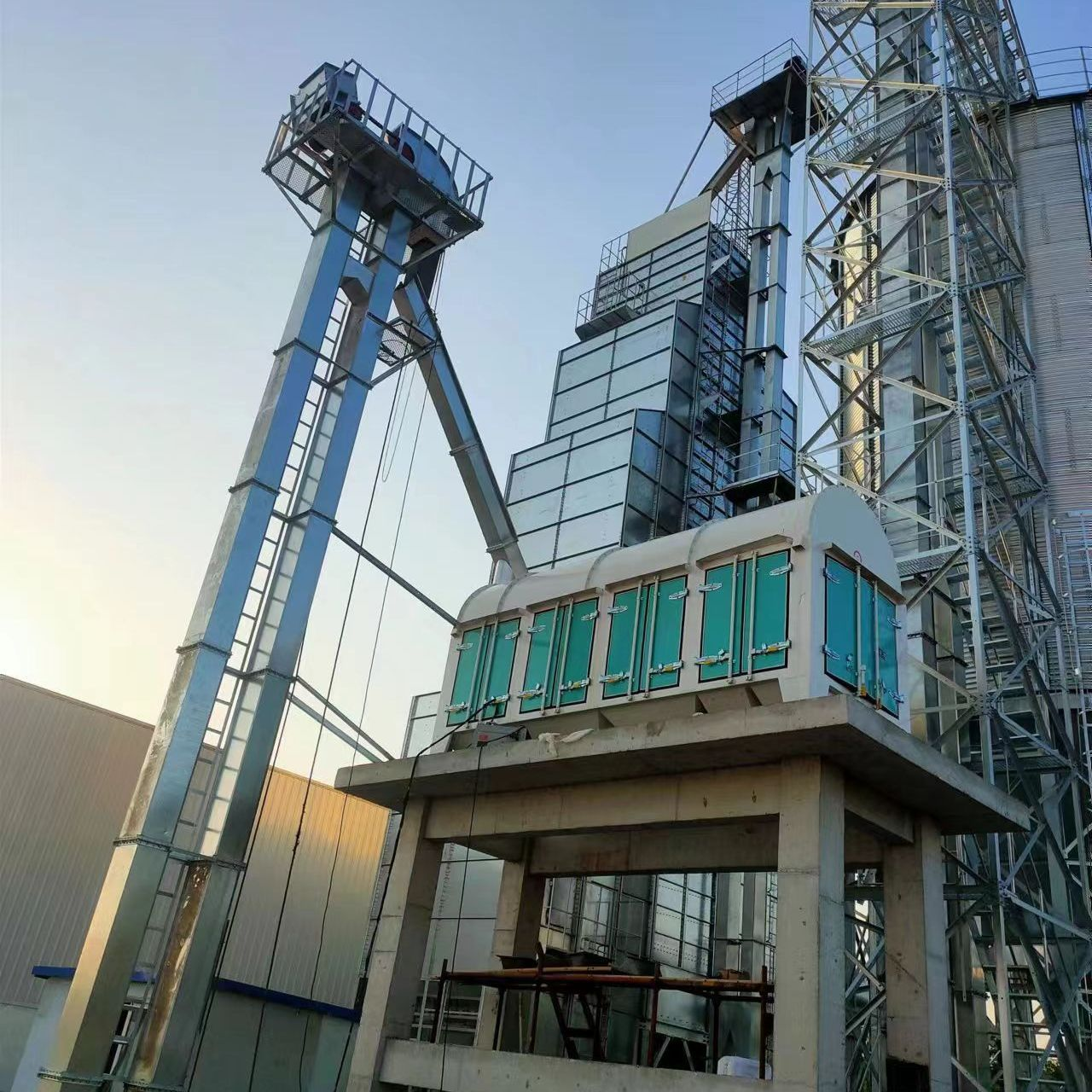

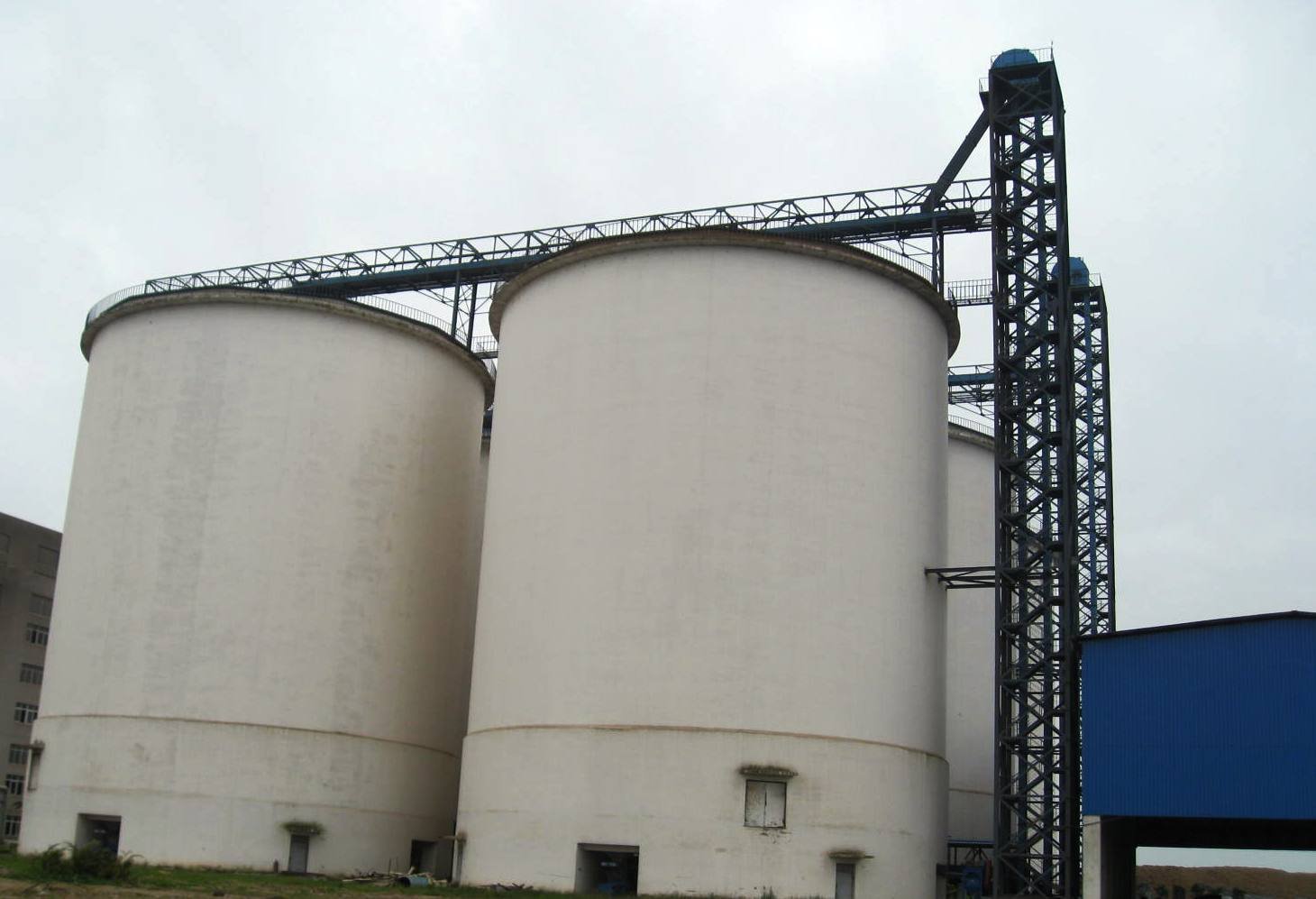

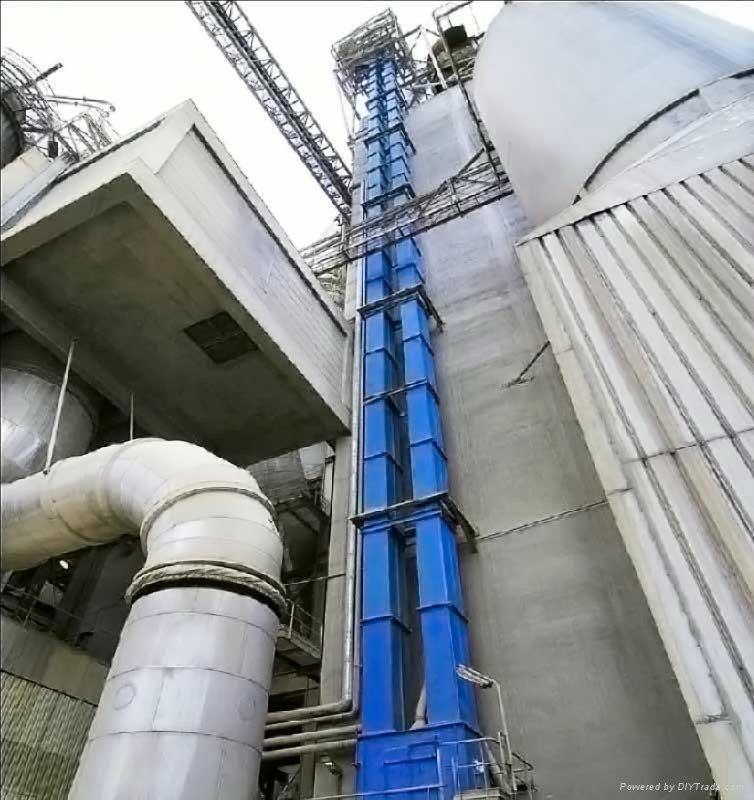

Widely used for vertical bulk material lifting in:Mining, cement building materials, coal, power plant, chemical industry, grain storage, feed processing, port bulk handling, metallurgy, compound fertilizer industry.Applicable materials: cement, clinker, coal, sand, ore, grain, fertilizer, limestone, fly ash, powder aggregate and other bulk solid materials.
10. Operation & Maintenance Notes
1. No overload feeding at initial start-up; prevent material blocking at bottom inlet.
2. Regularly check belt/chain tension, bucket fastening, abrasion of wearing parts.
3. Keep internal casing clean, avoid residual material accumulation causing jamming.
4. Lubricate reducer and bearing regularly per maintenance manual.
5. Ensure all safety protection devices are intact and valid during operation.
