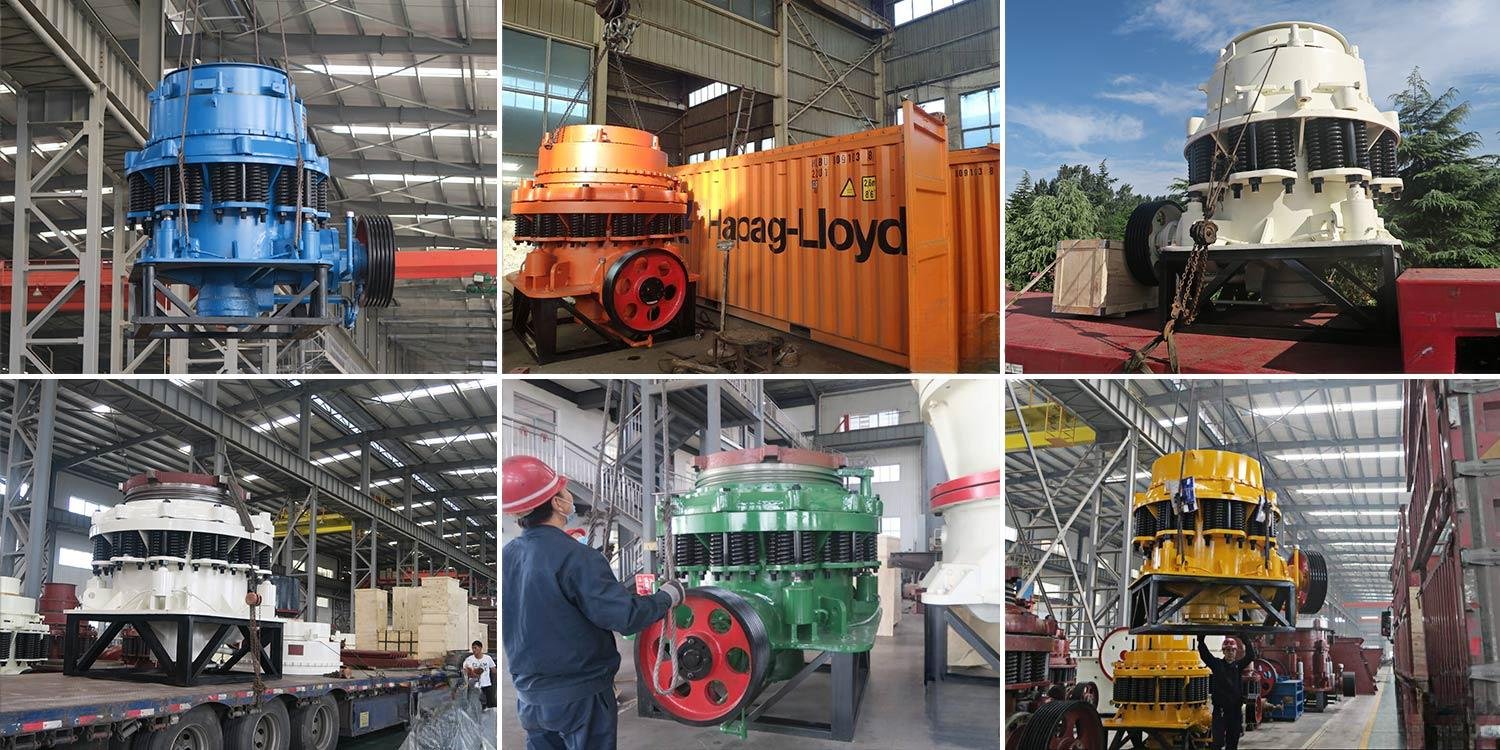

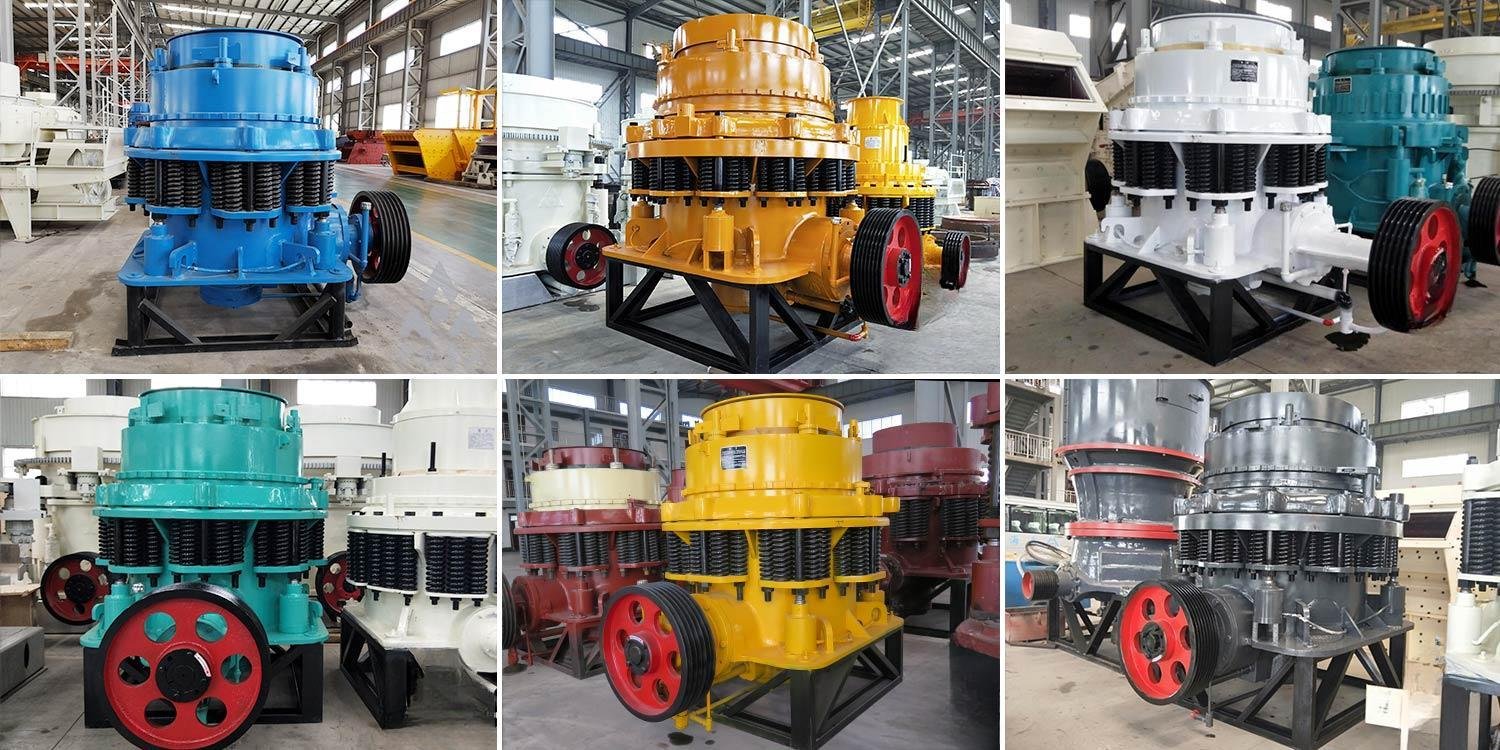

The PSG series cone crusher, also known as Symons cone crusher, is a classic spring-loaded compound cone crusher specifically designed for secondary and tertiary crushing of medium to hard ores and rocks. It is widely recognized for its reliability, cost-effectiveness, and versatility in various industrial applications.Basic Overview

• Applicable Materials: Granite, basalt, river pebbles, iron ore, limestone, and other medium to high-hardness ores and rocks.

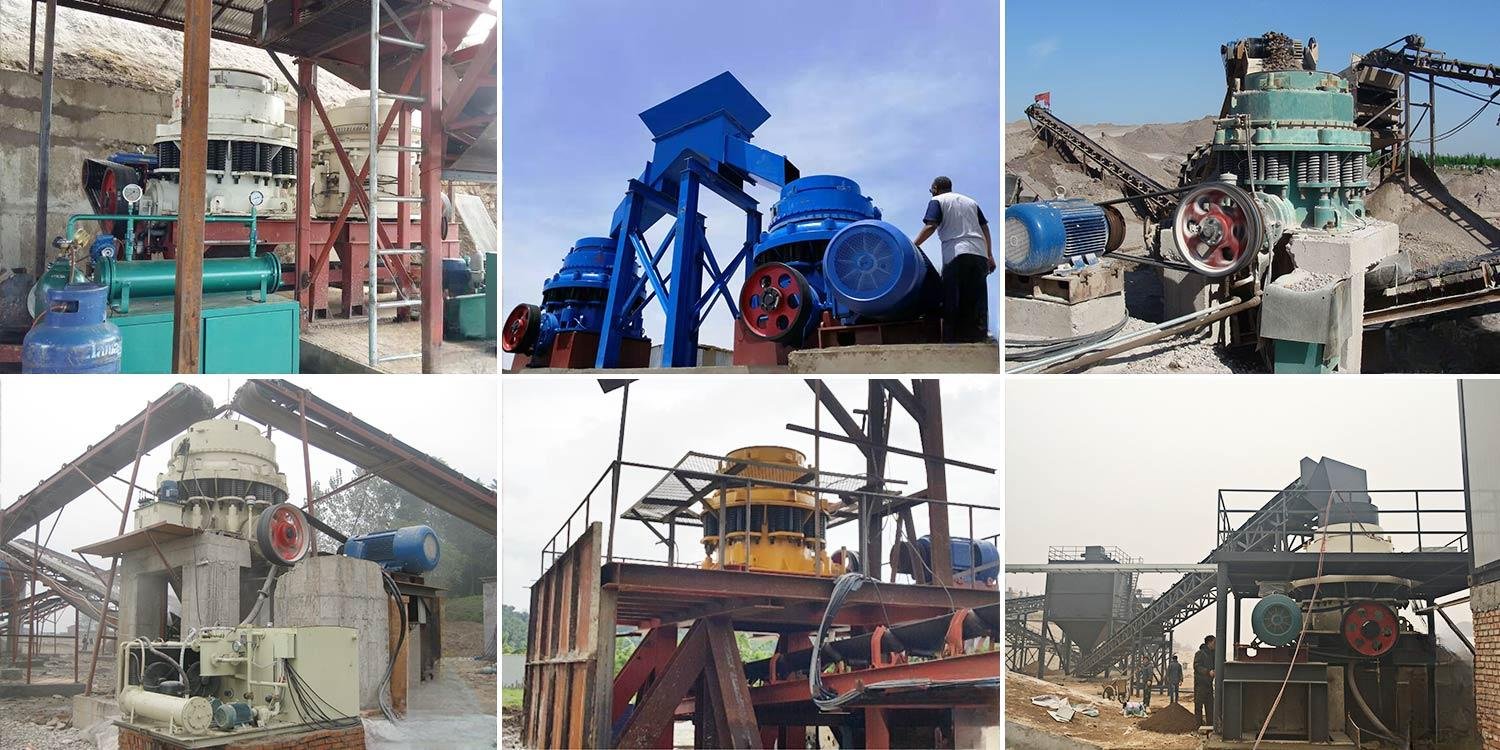

• Application Fields: Metallurgy, construction aggregates, road construction, cement production, chemical industry, and other related industries.

• Processing Capacity: 16–744 t/h; Feeding Size: 30–460 mm.

• Cavity Designs (3 Types):

• Standard Type: For secondary (coarse) crushing.

• Medium Type: For secondary and fine crushing.

• Short-head Type: For fine and ultra-fine crushing.




•

•

•

Structure & Working Principle

Main Components

Frame, transmission shaft, eccentric sleeve, crushing cone (moving cone), bowl liner (fixed cone), spring safety system, hydraulic cavity cleaning system, and lubrication and sealing device.

Working Principle

1. The motor drives the eccentric sleeve to rotate through the pulley, transmission shaft, and bevel gear.

2. Driven by the eccentric sleeve, the moving cone makes a swinging motion, sometimes approaching and sometimes moving away from the fixed cone.

3. Materials are crushed by extrusion, grinding, and impact in the crushing cavity.

4. Qualified materials are discharged from the discharge port, while large pieces continue to be crushed until they meet the required size.

Key Features

• Spring Overload Protection: Foreign objects such as iron blocks can pass through the crushing cavity, effectively preventing equipment damage.

• Efficient Laminated Crushing: Produces high-quality cubical particles with uniform particle size and low circulating load.

• Reliable Sealing Design: Adopts dry oil or water sealing to prevent dust and leakage, extending the service life of lubricating oil and components.

• Easy Maintenance: The hydraulic cavity cleaning system enables quick cavity cleaning; the fixed cone and moving cone can be disassembled and installed from the top or side.

• Low Operating Cost: Features large crushing force, high efficiency, low energy consumption, easy adjustment, and economic practicality.

4. Technical Parameter

5. Brief Comparison with Hydraulic Cone Crusher

• PSG (Spring Type): Simple structure, low cost, and easy maintenance; suitable for small and medium production capacity and conventional crushing scenarios.

• Full Hydraulic Cone Crusher: High degree of automation, more precise discharge port adjustment, and more sensitive overload protection; suitable for large-scale, high-capacity, and intelligent production lines.

Summary

The PSG series spring cone crusher is a cost-effective, reliable, and versatile crushing machine for medium to hard materials. It is widely used in the aggregate, mining, and construction industries, especially in the secondary and tertiary crushing stages, providing stable and efficient crushing solutions for various projects.
