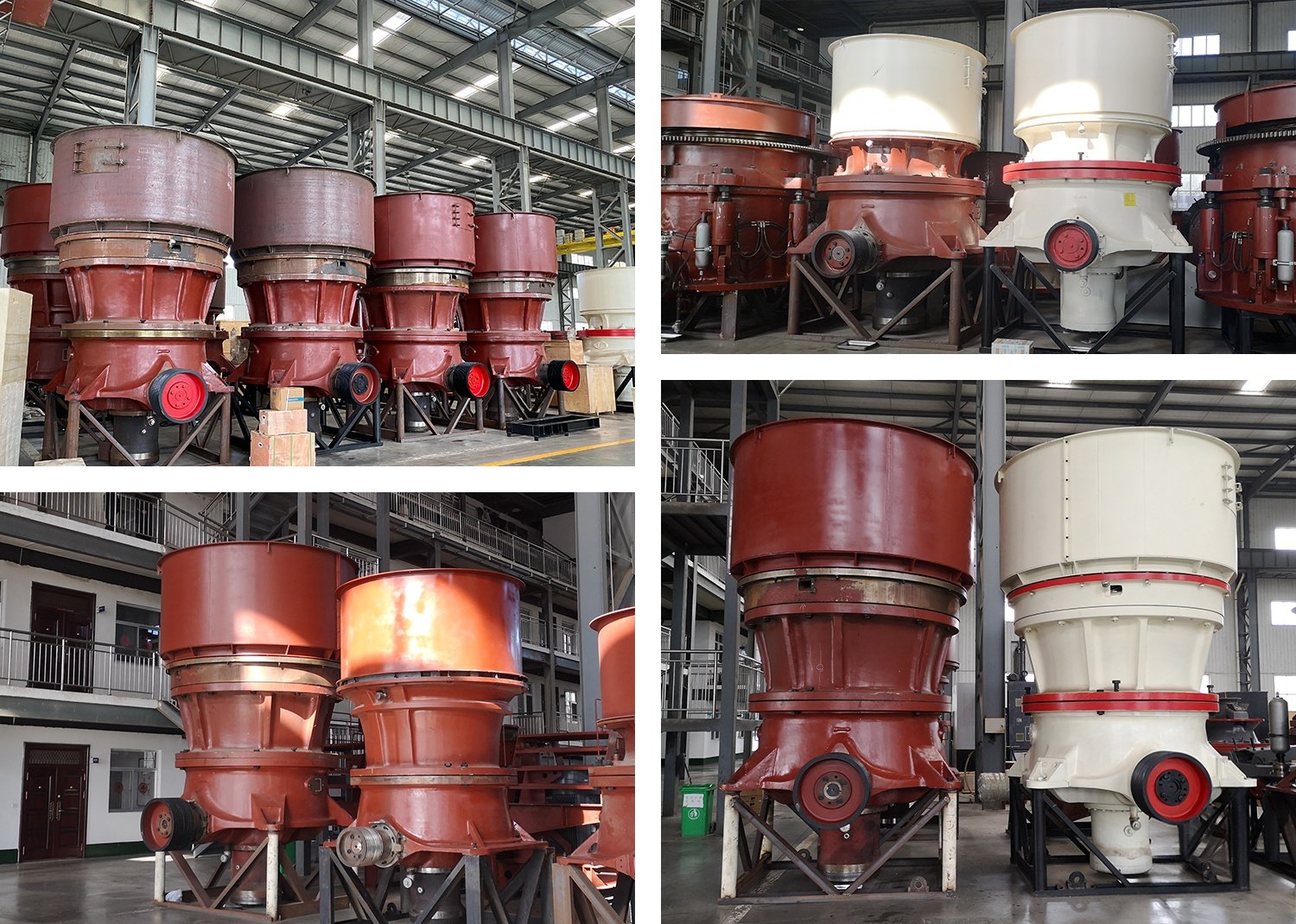

Product Overview

The DP Series Single-cylinder Hydraulic Cone Crusher is widely used in numerous sectors such as mining, smelting, building materials, highways, railways, water conservancy, and chemistry. It can crush medium-hard and above-hard materials such as iron ore, limestone, and granite, and is an ideal equipment suitable for medium and fine crushing.

The single-cylinder hydraulic cone crusher is mainly composed of a frame, fixed cone assembly, moving cone assembly, spring mechanism, bowl-shaped shaft frame, and transmission parts. Its auxiliary parts consist of an electrical system, thin oil lubrication system, and hydraulic cavity cleaning system. The fixed cone assembly is mainly composed of an adjusting sleeve and a concave liner, while the moving cone assembly is mainly composed of a main shaft, moving cone body, and mantle. The transmission part is mainly composed of a large pulley, transmission shaft, small bevel gear, and large bevel gear.

When the single-cylinder hydraulic cone crusher is in operation, the motor drives the eccentric sleeve to rotate through the V-belt, bevel gear, and large bevel gear. The axis of the crushing cone makes a rotational swing under the drive of the

• Neat particle shape and high output;

• Large crushing capacity;

• Continuous and stable operation, with automatic overload protection to prevent damage caused by iron inclusion;

• The efficient rotary feeding device ensures uniform wear of the liner.

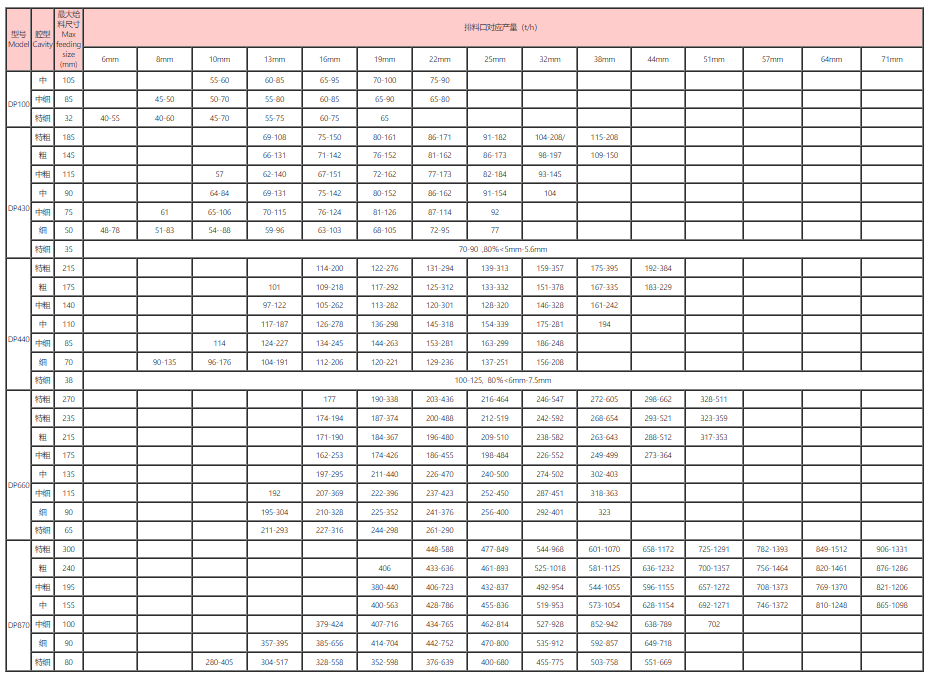

Technical Parameter

Applications

• Mining: Medium/fine crushing of metal ores (iron, copper, gold) and non-metallic minerals (limestone, quartz).

• Aggregate Production: High-quality crushed stone and manufactured sand for highways, railways, and construction projects.

• Recycling & Industrial Use: Construction waste recycling, concrete batching plants, and power plant desulfurization.
