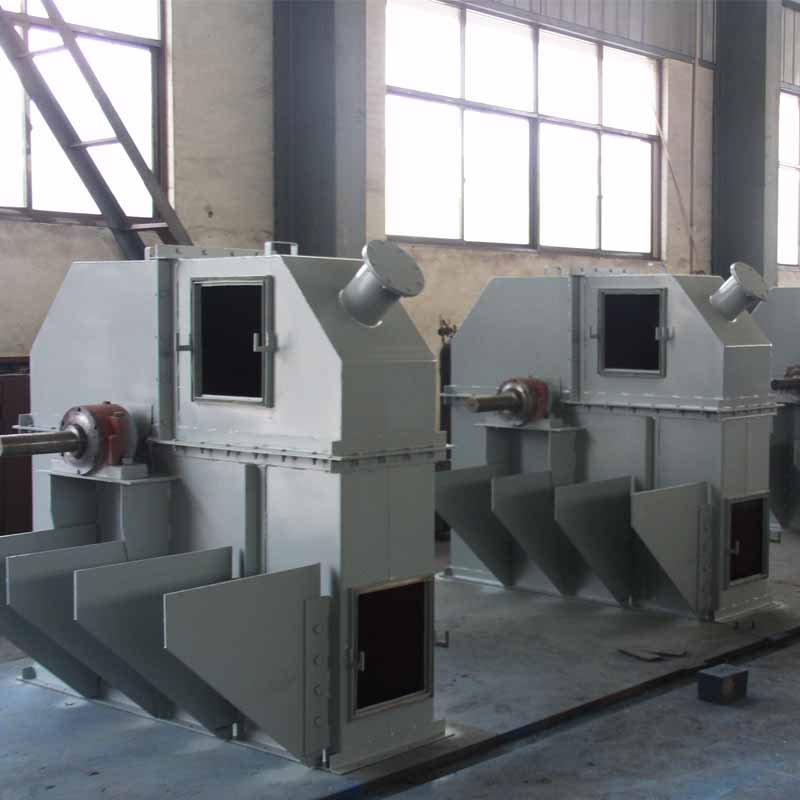

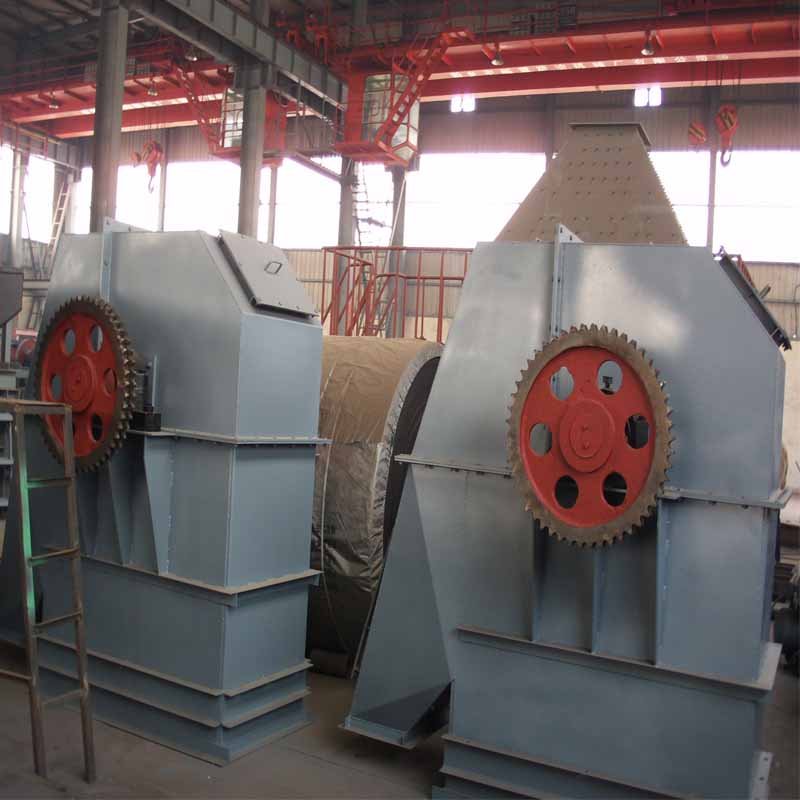

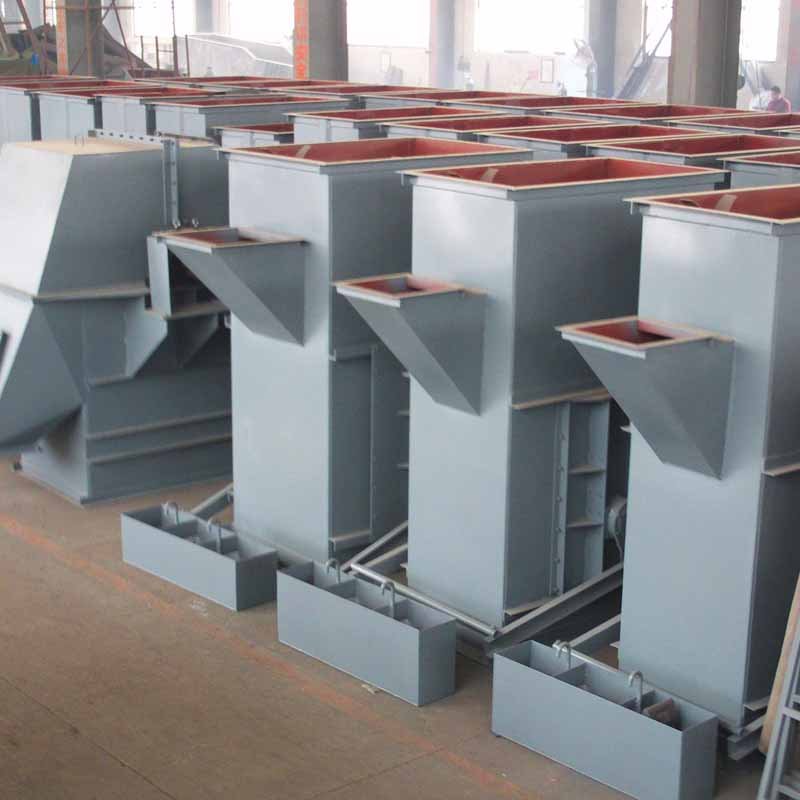

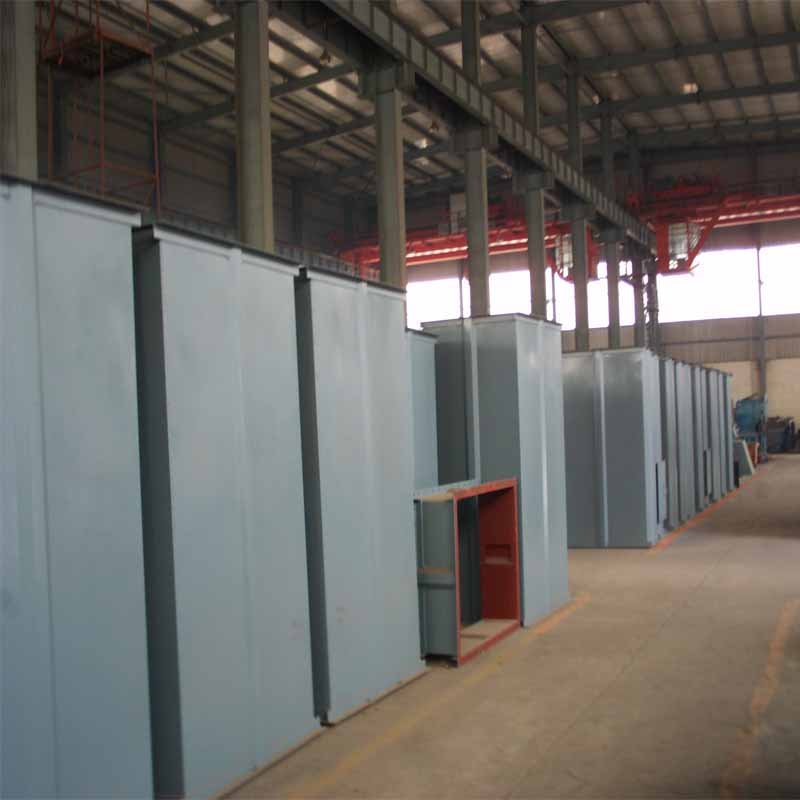

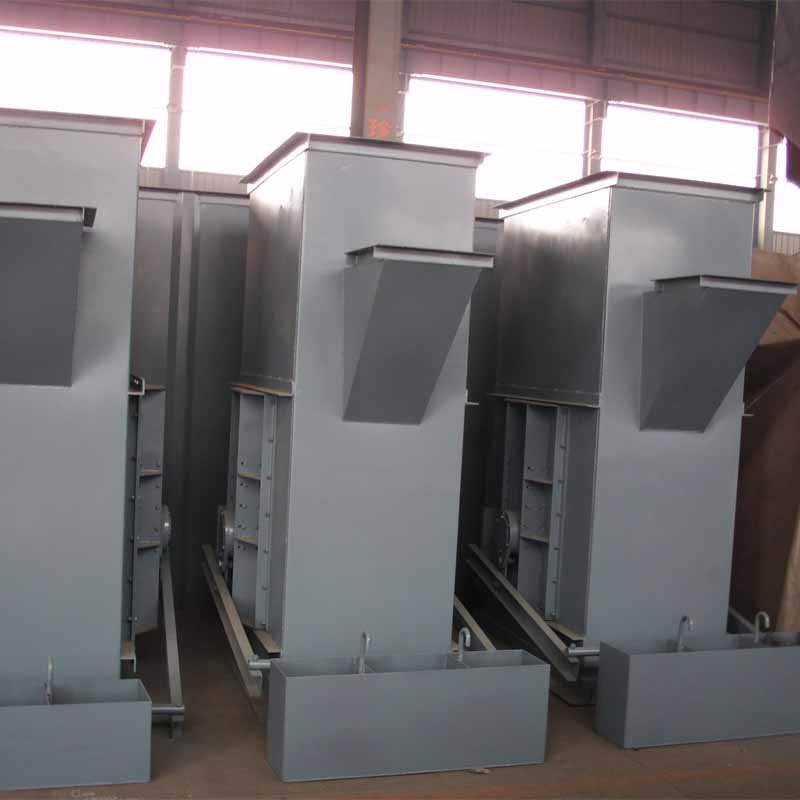

Product Overview

NE series bucket elevator is a new heavy-duty plate chain vertical lifting equipment. It adopts plate chain traction and gravity discharging structure, with strong load capacity, high temperature resistance and excellent wear resistance.

This elevator is suitable for vertically conveying granular, blocky, powdery and abrasive bulk materials. Widely applied in cement, mining, coal, metallurgy, chemical, building materials and other industries.

Main Features

1. Adopts high-strength alloy steel plate chain, low elongation, strong tensile resistance and long service life.

2. Gravity discharging mode, low material crushing rate, no material backflow and blocking.

3. Slow and stable running speed, low noise, safe and reliable operation.

4. Fully sealed shell, good dustproof effect, no dust leakage, meeting environmental protection requirements.

5. Large conveying capacity and super high lifting height, suitable for heavy working conditions.

6. Equipped with backstop device to prevent reverse rotation and material backflow.

7. Simple structure, convenient installation, maintenance and low operating cost.

Working Principle

Materials are fed from the bottom inlet, scooped up by the moving buckets, lifted vertically to the top, and discharged by gravity at the head section. The continuous circular operation realizes stable and continuous material transportation.

Applicable Materials

Limestone, clinker, coal, ore, sand, gypsum, raw meal, granular chemicals and other bulk materials.

Technical Parameter
