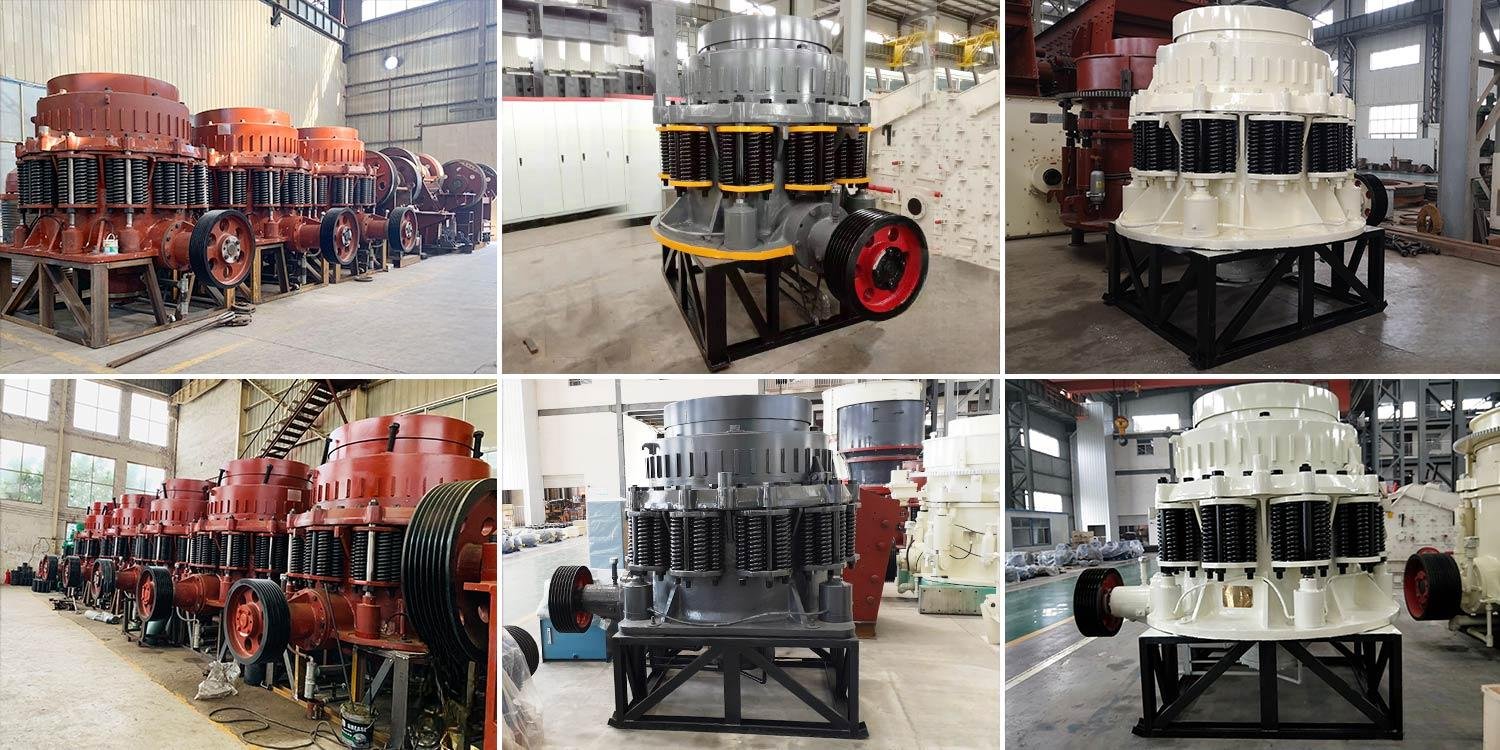

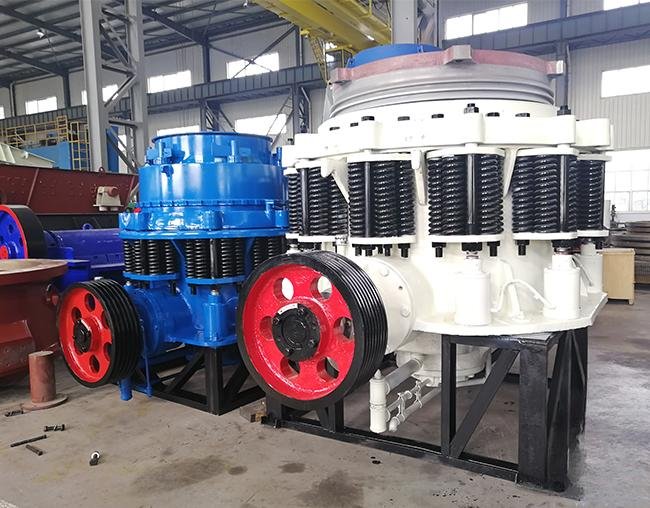

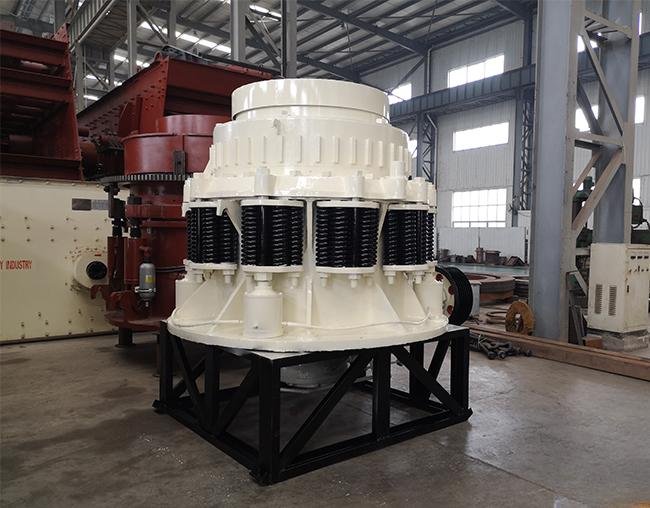

ZX Series Compound Cone Crusher 105-725 t/h for Secondary & Tertiary Crushing
Product OverviewThe ZX Series Compound Cone Crusher is a high-performance spring-loaded compound con
- 80-610 t/h (tons per hour)
- ≤300 mm
- River pebbles, basalt, granite, iron ore
- Widely used in aggregate shaping, manufactured sand production, asphalt concrete, building materials, mining, chemical industry, highway construction, railway construction, metallurgy, architecture, water conservancy and other related industries.
- Information
Product Overview
The ZX Series Compound Cone Crusher is a high-performance spring-loaded compound cone crusher developed based on the laminated crushing principle and the concept of "more crushing, less grinding". It integrates high swing frequency, optimized cavity design, and reasonable stroke, making it an ideal upgraded alternative to traditional cone crushers for secondary and tertiary crushing of medium-to-hard materials.
Core Specifications
Processing Capacity: 80–610 t/h
Maximum Feeding Size: ≤300 mm
Discharge Opening Range: 10–65 mm
Cavity Types: Coarse (C), Medium Coarse (Z), Medium (M), Fine (X) / Standard & Short-head series, adaptable to different crushing demands
Motor Power: 90–250 kW
Applicable Materials
River pebbles, basalt, granite, iron ore, limestone, concrete, quicklime, gypsum, hydrated lime, and other medium-to-high hardness ores and rocks.
Application Fields
Widely used in aggregate shaping, manufactured sand production, asphalt concrete, building materials, mining, chemical industry, highway construction, railway construction, metallurgy, architecture, water conservancy and other related industries.
Structure & Working Principle
Main Components
The crusher mainly consists of frame, fixed cone assembly, moving cone assembly, spring mechanism, bowl-shaped shaft bracket, transmission system, as well as auxiliary systems including electrical system, thin oil lubrication system, and hydraulic cavity cleaning system.
Working Principle
The motor drives the eccentric sleeve to rotate through the V-belt, large pulley, transmission shaft, and bevel gear pair.
Driven by the eccentric sleeve, the axis of the crushing cone performs a rotational swing motion, making the surface of the crushing wall (moving cone) alternately approach and move away from the surface of the bowl liner (fixed cone).
Materials in the annular crushing cavity formed by the fixed cone and moving cone are continuously crushed by impact, extrusion, and bending.
After multiple crushing cycles, materials are crushed to the required particle size and discharged from the lower part of the crusher.
Key Features
High-Efficiency Laminated CrushingAdopts optimized cavity design and reasonable stroke, achieving efficient laminated crushing. The finished product has a high proportion of cubical particles, uniform particle size, low circulating load, and can meet the demand for high-quality aggregates.
Dual Protection & Stable OperationCombines spring overload protection and hydraulic insurance system, which can effectively pass foreign objects such as iron blocks through the crushing cavity, preventing equipment damage and greatly reducing downtime. The classic structure design ensures long-term stable operation in various working conditions.
Convenient Operation & Low Maintenance CostEquipped with hydraulic adjustment, hydraulic locking, and hydraulic cavity cleaning systems, the discharge opening can be adjusted quickly and accurately, and cavity cleaning can be completed in a short time. The replacement of moving and fixed liners does not require filling, which simplifies maintenance and reduces equipment management costs.
Reliable Sealing & Long Service LifeAdopts dry oil seal dust-proof design with reliable sealing effect, which can effectively prevent dust and impurities from entering the equipment, avoid the common fault of oil-water mixing in traditional crushers, and extend the service life of lubricating oil and core components.
High Power Utilization & Low Energy ConsumptionIncreased rotating speed and optimized power distribution design achieve high power utilization rate, low energy consumption per ton of material, and effectively reduce the operating cost of the production line.
Technical Parameters (Reference)
| 型号 Model | 腔型 Cavity Type | 最大给矿粒度 Max. Feeding Size(mm) | 排料口调整范围 Discharging Opening Adjustment Scope(mm) | 开路生产时的处理能力 Capacity (t/h) | 电机功率 Motor power (kw) | 机器参考重量 Weight (t) |
| ZX1950C-D | 粗碎 Coarse | 350 | 60-110 | 330-725 | 315 | 45 |
| ZX1950Z-D | 中碎 Medium Coarse | 180 | 19-40 | 230-330 | 315 | 45 |
| ZX1650C₂-D | 粗碎 Coarse | 300 | 35-65 | 280-610 | 250 | 35 |
| ZX1650C-D | 粗碎 Coarse | 260 | 30-60 | 265-580 | 250 | 35 |
| ZX1650Z-D | 中碎 Medium Coarse | 240 | 25-50 | 240-550 | 250 | 35 |
| ZX1400C-D | 粗碎 Coarse | 235 | 30-60 | 210-530 | 220 | 25 |
| ZX1400Z-D | 中碎 Medium Coarse | 215 | 25-50 | 200-500 | 220 | 25 |
| ZX1400Z-X | 中碎 Medium Coarse | 180 | 22-45 | 180-475 | 220 | 25 |
| ZX1200C-D | 粗碎 Coarse | 180 | 19-50 | 110-250 | 132 | 16 |
| ZX1300C-D | 粗碎 Coarse | 200 | 16-51 | 135-350 | 160 | 21.5 |
| ZX1300Z-D | 中碎 Medium Coarse | 150 | 13-25 | 105-180 | 160 | 21.5 |
Summary
The ZX Series Compound Cone Crusher is a cost-effective, high-performance, and easy-to-maintain crushing equipment that inherits the stability of the classic spring cone crusher and upgrades the hydraulic control system. It is widely used in mining, aggregate, construction and other industries, and can provide stable and efficient crushing solutions for various secondary and tertiary crushing scenarios, especially for projects that have high requirements for finished product quality and operation convenience.
