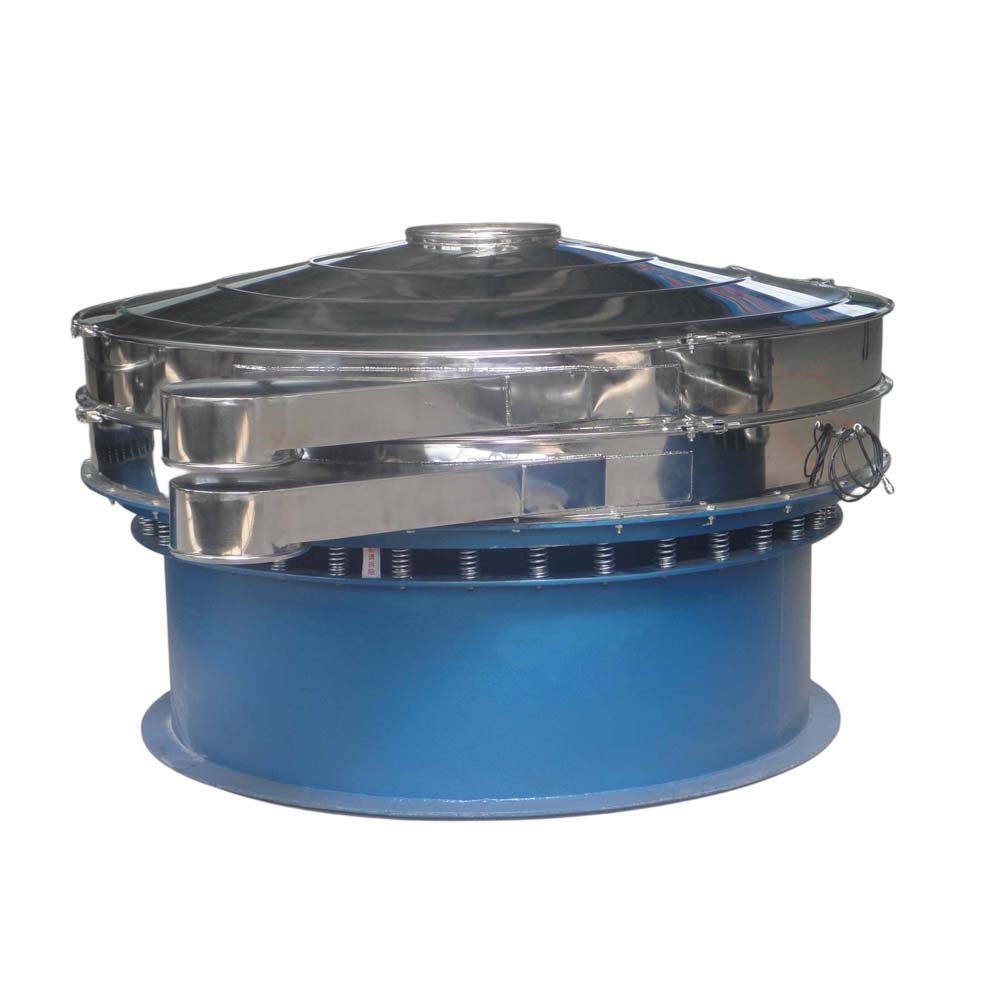

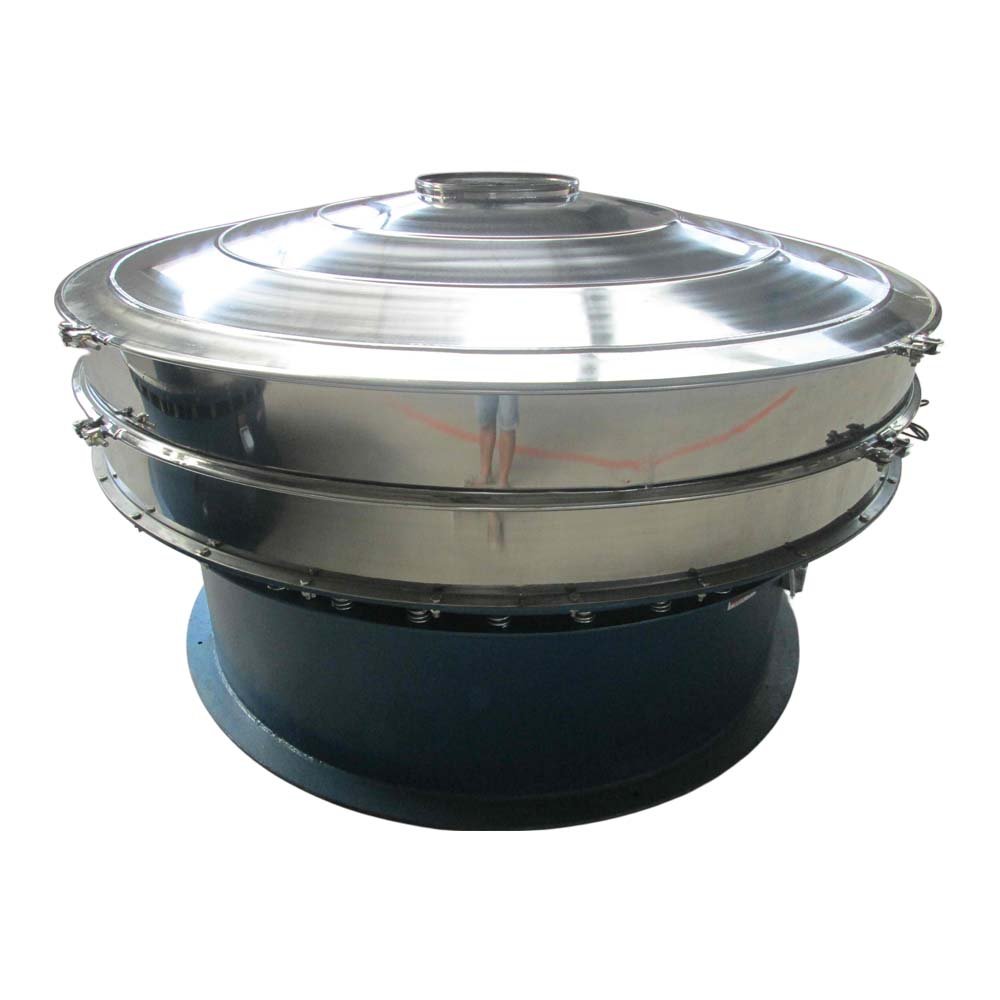

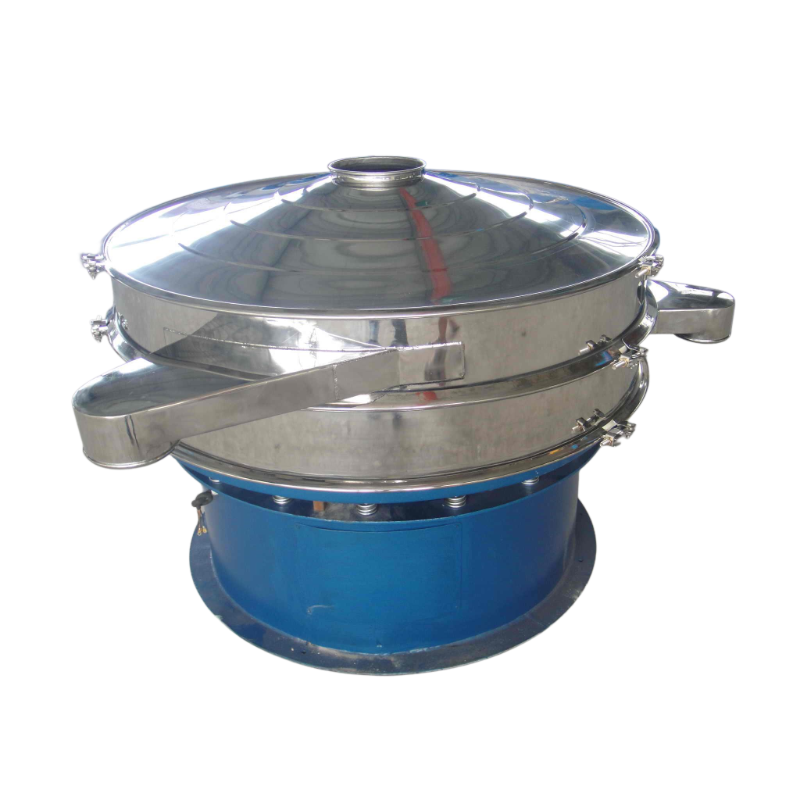

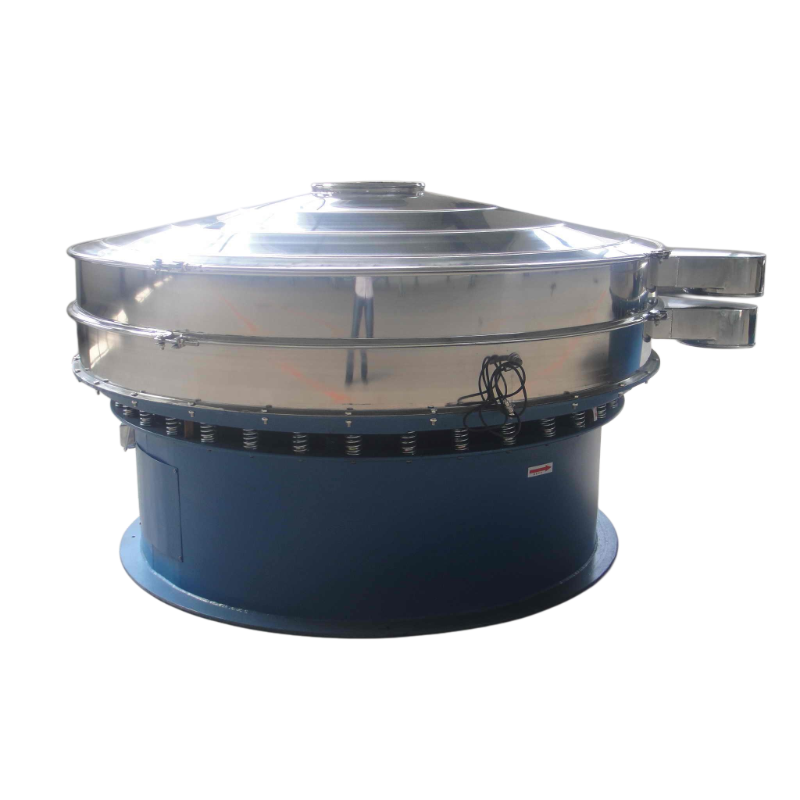

Product Overview

The three-dimensional rotary vibrating screen/filtering machine is a high-precision screening machine for fine powders. Its primary function is to separate dry materials into different particle size groups or separate solids from liquids. It features low noise, high efficiency, and quick screen replacement in only 3–5 minutes with a fully enclosed structure.In addition, operators can adjust the speed at which materials pass through the screen and their movement direction on the screen surface, providing maximum processing capacity and screening efficiency for any application, whether for wet or dry materials, heavy or light materials, coarse or fine particles.

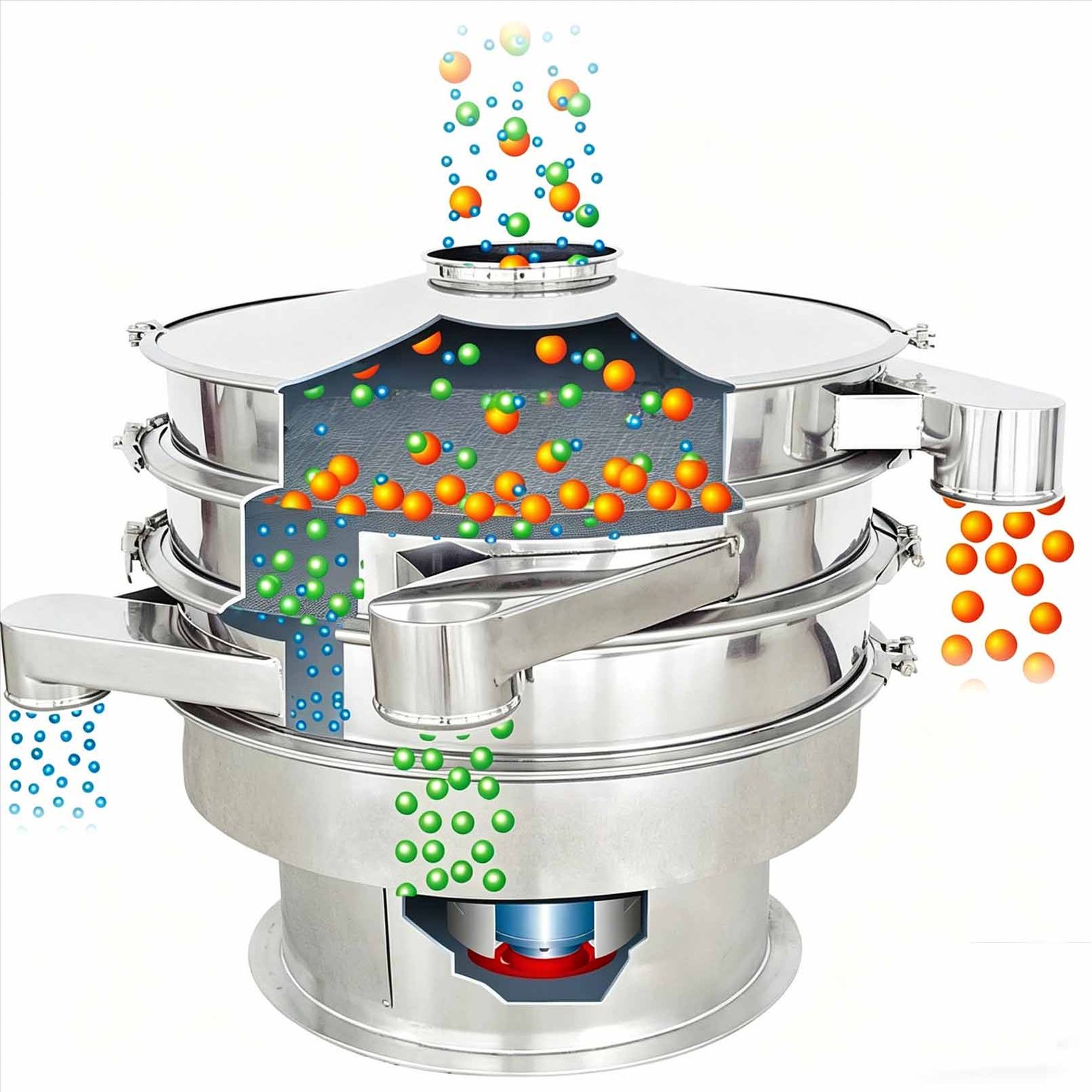

Working Principle

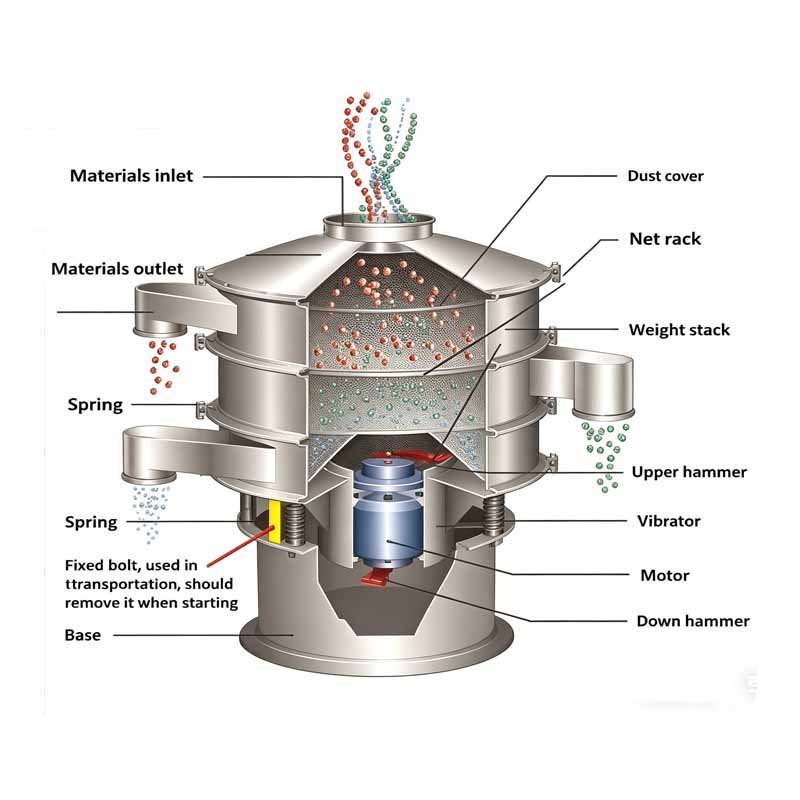

The three-dimensional rotary vibrating screen/filtering machine uses a vertical motor as the vibration source. Eccentric weights are installed at the upper and lower ends of the motor, converting the rotational motion of the motor into three-dimensional movement: horizontal, vertical, and inclined. This motion is then transmitted to the screen surface. Adjusting the phase angle of the upper and lower eccentric weights can change the movement trajectory of materials on the screen.

Product Features

1. Compact and durable design with high efficiency and low power consumption; suitable for screening all types of powders and viscous liquids.

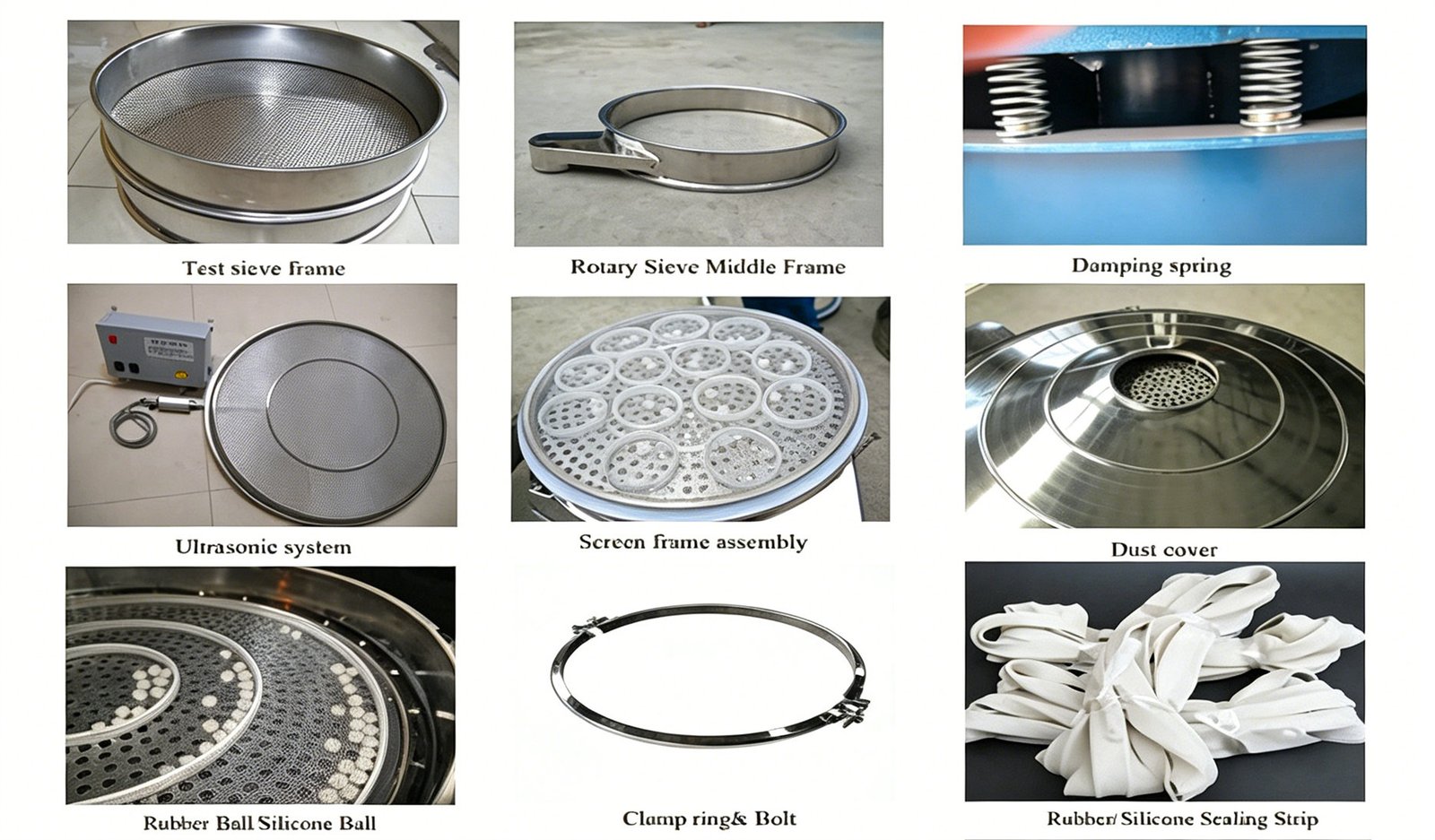

2. Unique screen frame design ensures long screen life, easy screen replacement, simple operation, and convenient cleaning.

3. Small size, space-saving, requires no foundation installation, and is easy to move.

4. Non-clogging screen mesh, no dust flying; capable of screening particles as fine as 500 mesh and filtering slurries up to 500 mesh.

5. Customizable specifications ranging from 400mm to 1800mm in diameter; can be equipped with up to 5 layers of different mesh screens to separate materials into 6 distinct particle grades.

Technical Parameters
