Product Overview

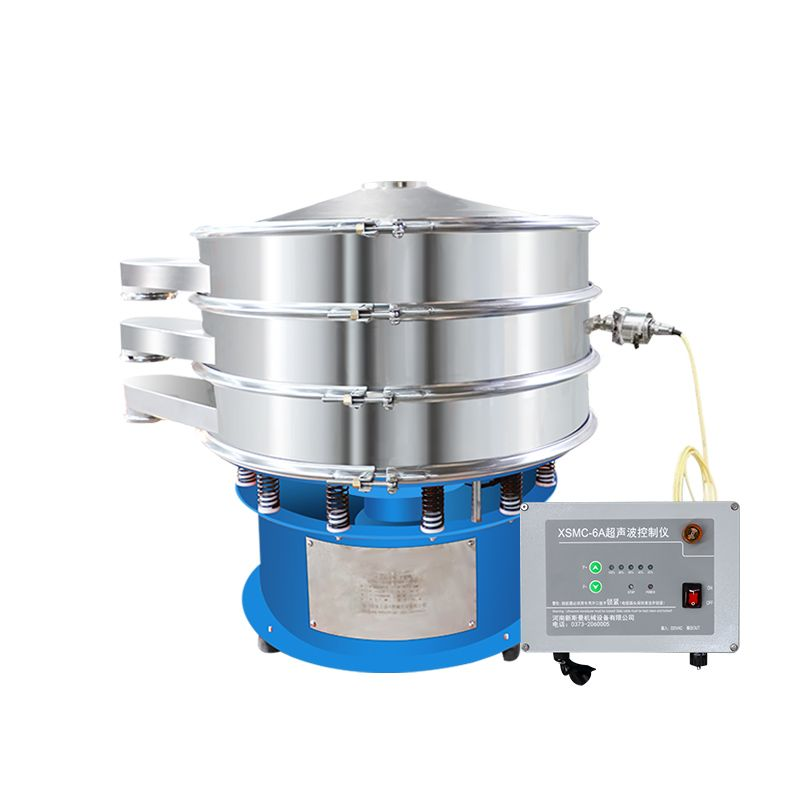

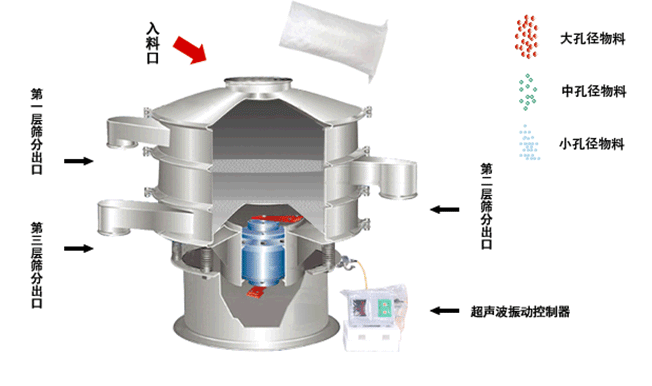

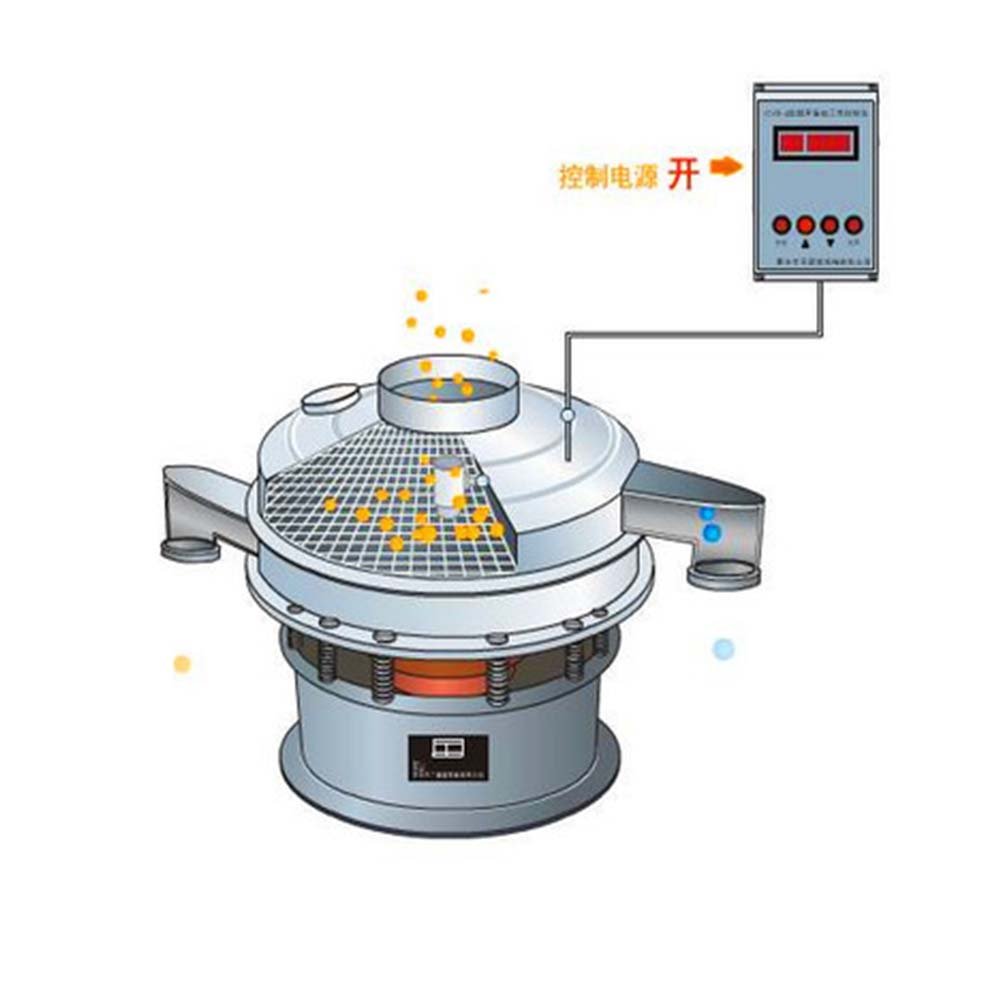

Ultrasonic vibrating screen is a derivative of the rotary vibrating screen, which organically integrates an ultrasonic controller with a vibrating screen. Based on the rotary vibrating screen, a high-frequency, low-amplitude ultrasonic vibration wave is superimposed on the screen mesh. Ultra-fine powder is subjected to a huge ultrasonic acceleration, keeping the materials on the screen surface in a suspended state at all times. This suppresses screen clogging factors such as adhesion, friction, leveling and wedging, thus solving difficult screening problems including strong adsorption, easy agglomeration, high static electricity, high fineness, high density and low specific gravity. It makes ultra-fine powder screening easy, especially suitable for users of high-quality and fine powder. Ultrasonic vibrating screen is an effective and simple practical solution to mesh blockage during material screening. It is widely used in pharmaceutical, metallurgical, chemical, mineral processing, food and other industries requiring fine screening and filtration.

Product Features

1. Self-cleaning function ensures no mesh clogging.

2. Does not change the properties of the screened materials.

3. No anti-clogging devices such as bouncing balls required, resulting in long service life of the

   screen mesh.

4. Suitable for 40–635 mesh, especially for particles above 300 mesh.

5. Screening efficiency can be increased by 1–70%, and output can be maximized up to 10 times.

6. High screening accuracy, effectively solving screening problems such as strong adsorption,

            easy agglomeration, high static electricity, high density and low specific gravity.

Technical Parameters

Comparison Analysis between Ultrasonic Vibrating Screen and Conventional Screening Machine
