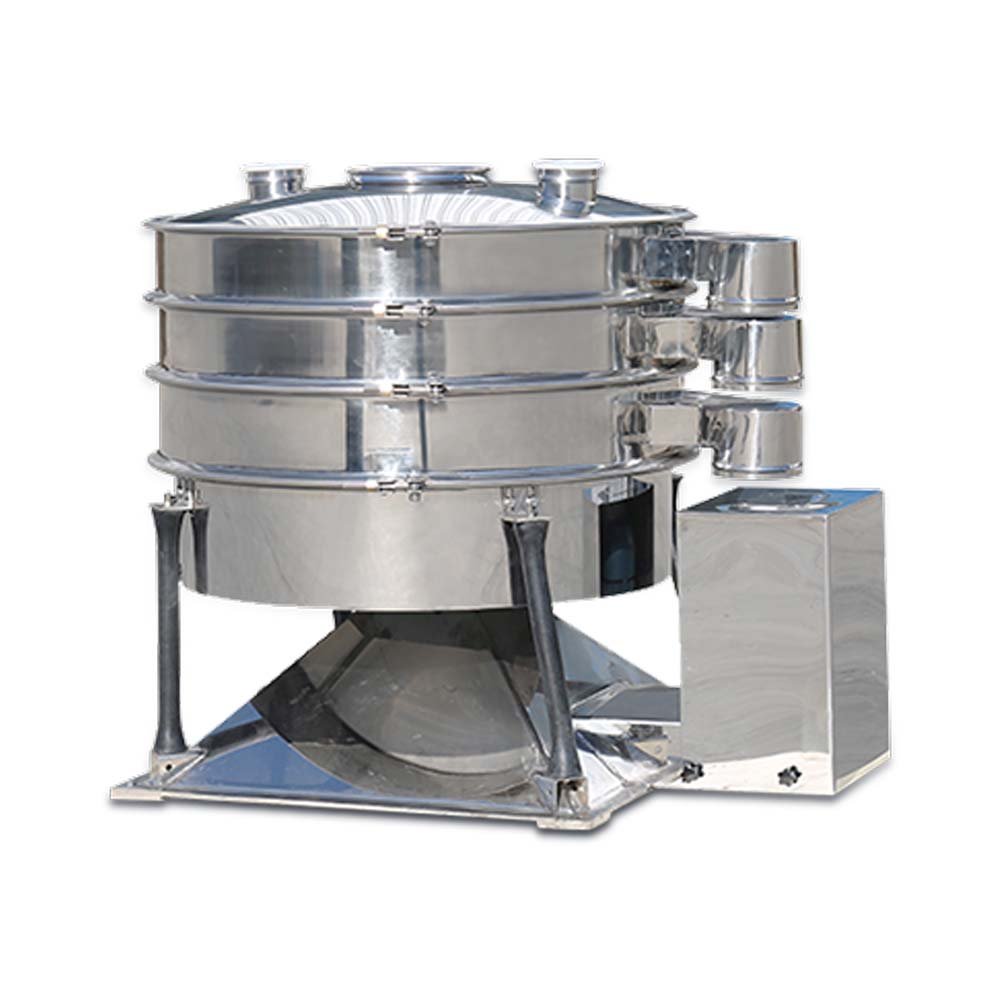

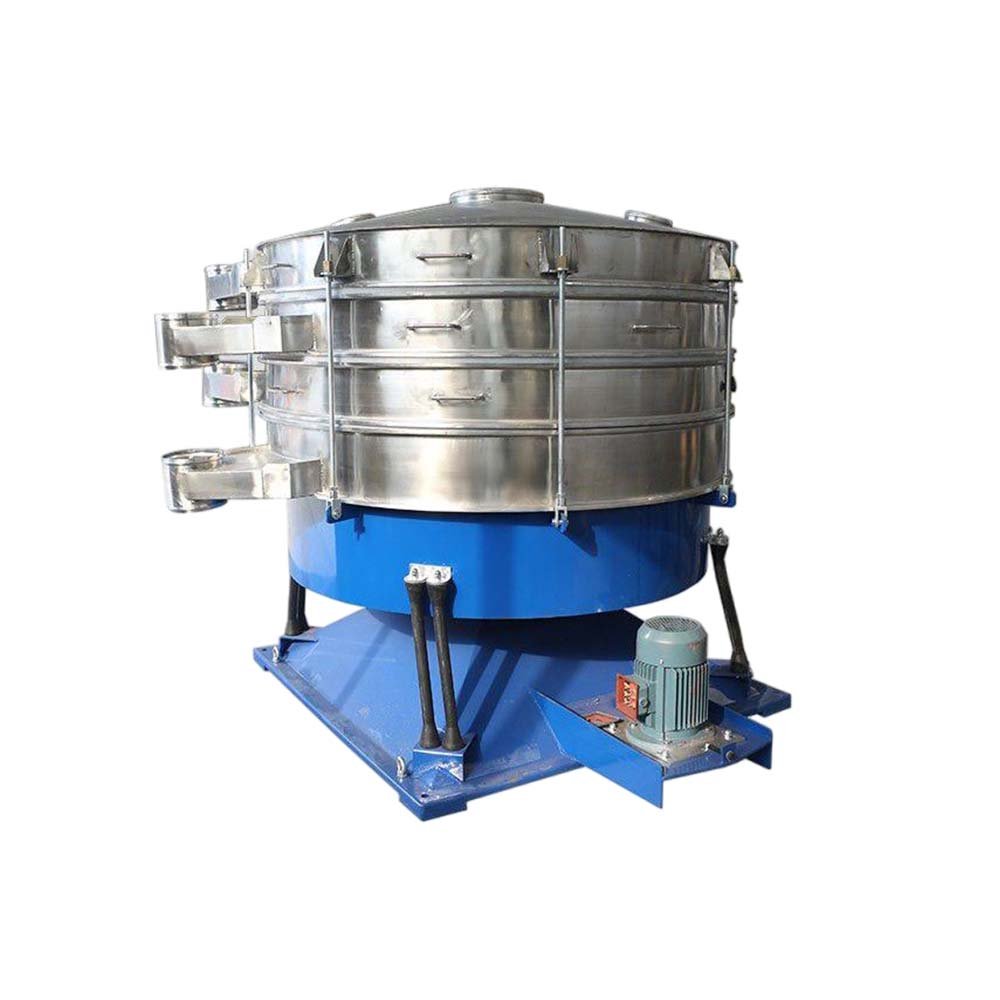

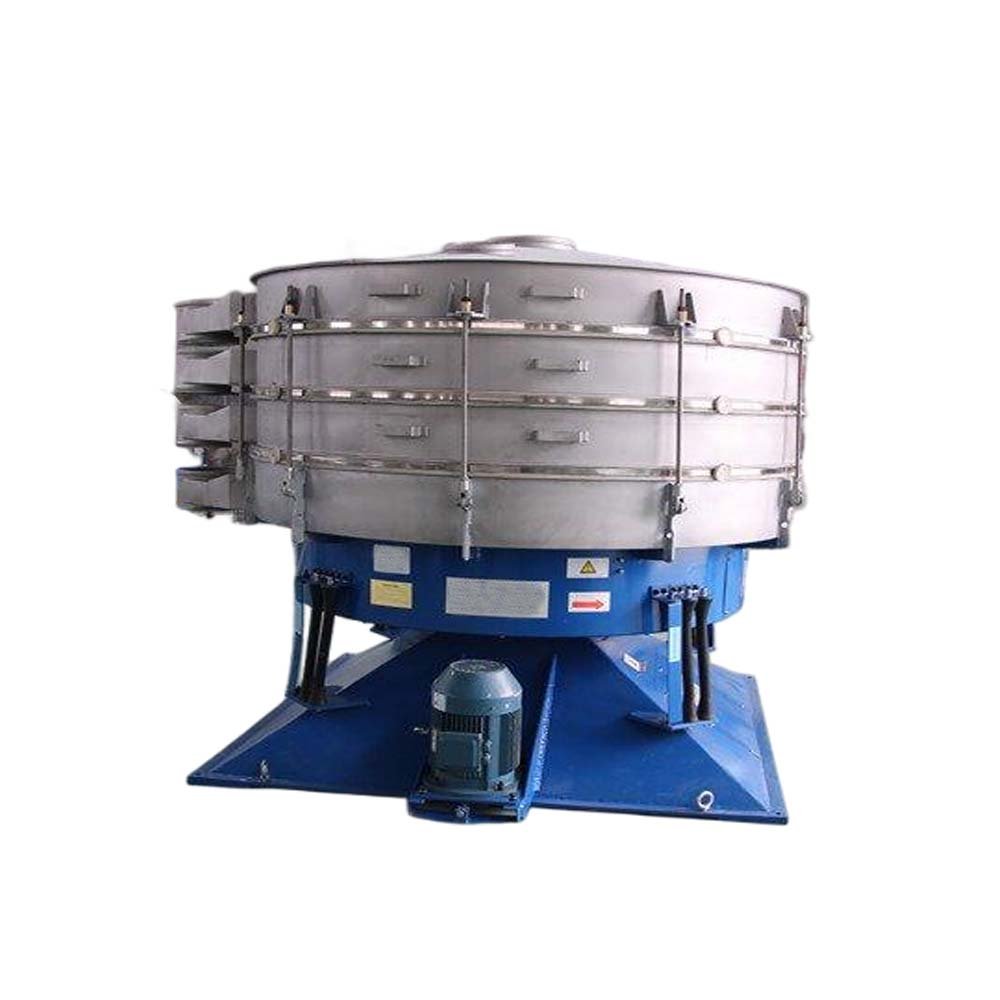

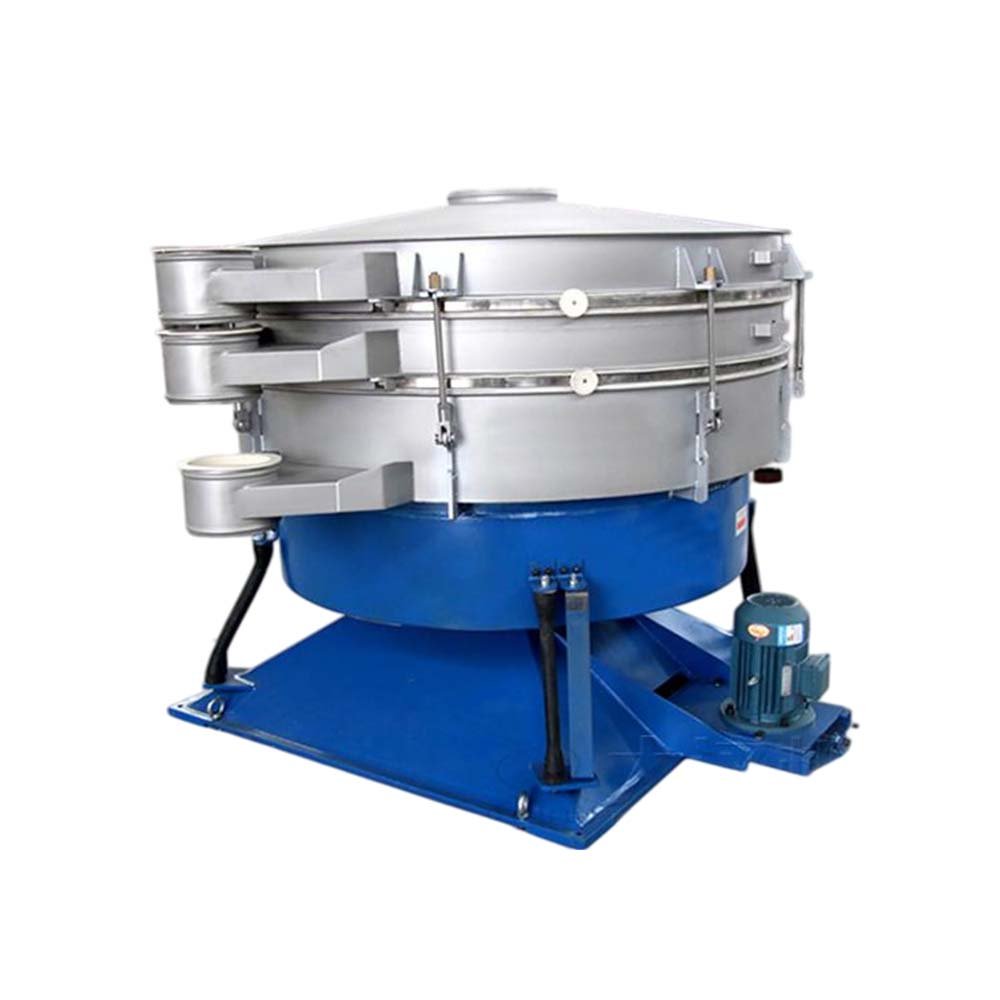

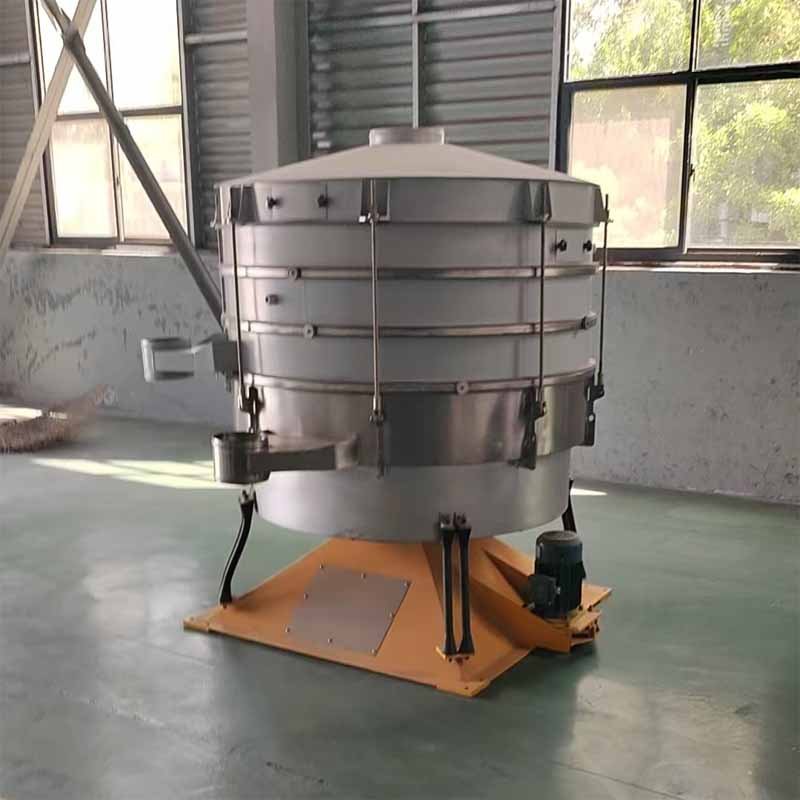

Stainless Steel High Capacity Powder Oscillating Rotary Swing Screen
Product Overview1. Output per unit area up to 5 times higher, accurate up to 6-stage separation, wit
- Circular gyratory tumbling motion (simulating manual sieving, gentle and stable, no material damage)
- 1–4 layers customizable, realizing multi-level classification at one time, meeting different screening needs
- High manganese steel, 304/316L stainless steel wire mesh, polyurethane screen plate; customized according to material
- 1–4 layers customizable, realizing multi-level classification at one time, meeting different screening needs
- High manganese steel, 304/316L stainless steel wire mesh, polyurethane screen plate; customized according to material
- Eccentric shaft drive (stable operation, low noise, adjustable swing amplitude, easy maintenance)
- Mining, sand aggregate, food, chemical, coal, construction waste, fragile materials screening and classification
- Gentle sieving, no damage to materials; large capacity, high screening efficiency; anti-clogging, easy maintenance; low noise, energy saving, long service life
- 380V 50Hz 3 phase; customized voltage (110V/220V/440V) available for global export
- Information
Product Overview
1. Output per unit area up to 5 times higher, accurate up to 6-stage separation, with screening efficiency reaching 95%–100%.
2. High efficiency, ingenious and durable design, suitable for screening all kinds of powders and
irregular particles.
3. Equipped with high-efficiency screen cleaning systems such as silicone rubber balls and ultrasonic
devices, preventing mesh blockage and effectively solving difficult screening problems.
4.No mesh clogging, no dust flying, capable of screening up to 500 mesh or 0.028 mm.
5.Automatic discharge of impurities and oversize materials, enabling continuous operation.
6.Unique screen frame design ensures long service life of screen mesh; screen changing is fast, taking
only 3–5 minutes.7.Compact size, space-saving and easy to move.
8.The screener can be equipped with up to 5 layers; 3 layers are recommended.
9.Acceleration is 4.5 times lower than that of vibrating screens, prolonging the service life of screening parts and reducing maintenance.
10. Noise level
Working Principle
The basic rotary motion imitates manual screening. The swing amplitude is adjustable from 25–40 mm, and the swing frequency is adjustable from 120–360 cycles per minute.
The residence time of materials in the screener can be adjusted by changing the radial and tangential angles of the screen.
The horizontal and throwing tumbling motion of materials on the screen surface distributes them evenly from the center to the edge. Fine particles are conveyed axially through the rotary motion, completing the entire screening process.
Horizontal and vertical acceleration increases as particles move, allowing particles close to the mesh size to be separated successfully, while oversized particles are conveyed to the discharge outlet.
Technical Parameter
| Model Item | 800 | 1000 | 1200 | 1500 | 2000 | 2500 | |||||||
| Screen Area(m²) | 0.45 | 0.68 | 1.1 | 1.6 | 2.9 | 4.6 | |||||||
| Number of Screen Layers | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 | |||||||
| Occupied Area(m²) | ≥0.64 | ≥0.81 | ≥1.57 | ≥1.95 | ≥3.24 | ≥4.0 | |||||||
| Driving Power(kw) | 1.1 | 1.5 | 2.2 | 3.0 | 4.0 | 5.5 | |||||||
| Screen Cleaning Type | Rubber ball cleaning/Ultrasonic cleaning/Brush cleaning | ||||||||||||
| Screening Efficiency | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | |||||||
| Reference Weight (kg) | ~410 | ~460 | ~485 | ~800 | ~1250 | ~1650 | |||||||
