Heavy Duty Mining Rod Bar Vibrating Screen
Advantages 1. Superior Scalping Performance: Equipped with high-strength wear-resistant grizzly bars
- up to 1000mm
- single deck
- from 50mm to 300mm
- 80 – 850 t/h
- Customized
- 6 – 14mm
- 10° – 15°
- circular vibrating motion
- high manganese steel, wear-resistant and impact-resistant
- Information

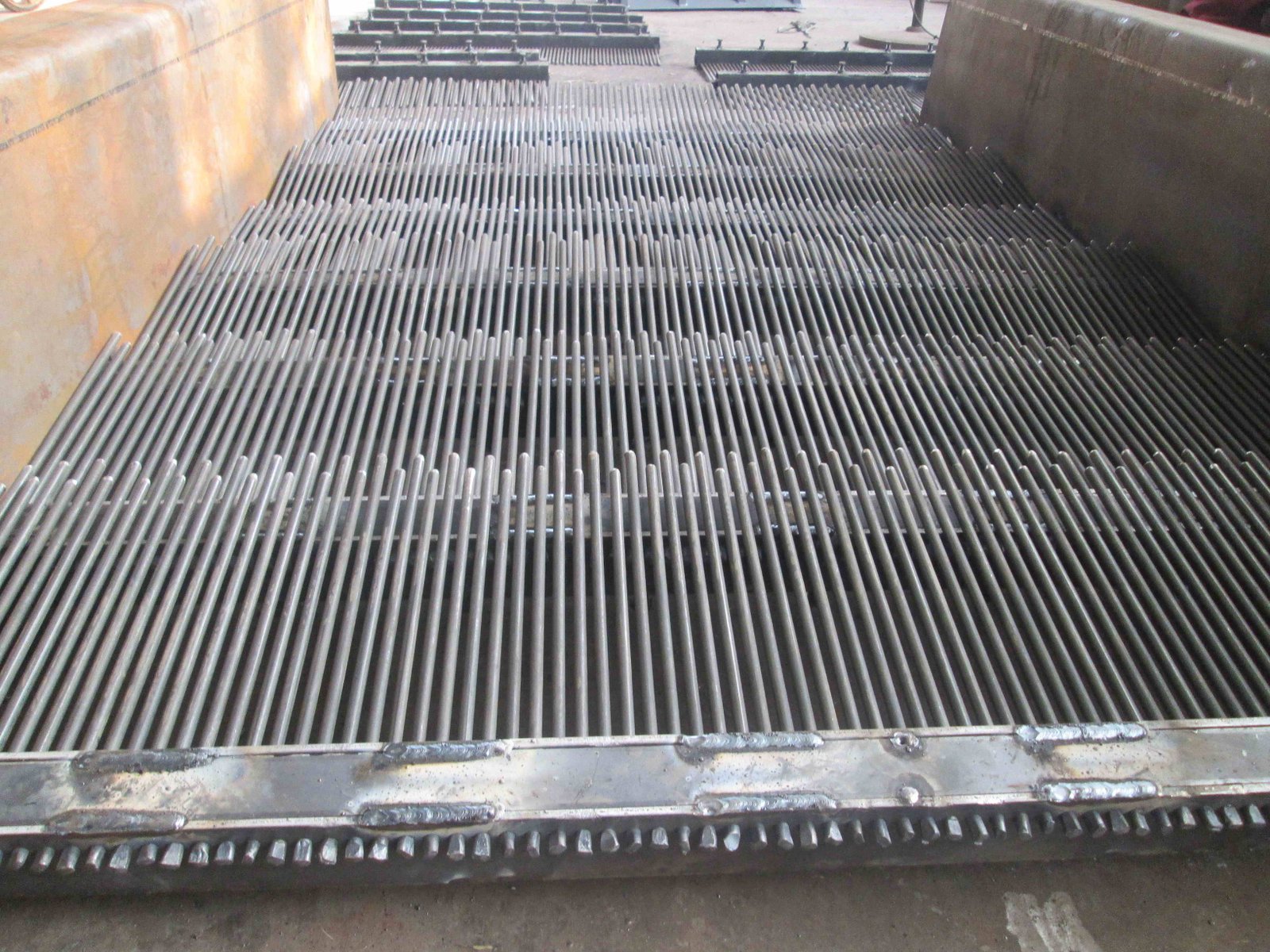

1. Superior Scalping Performance: Equipped with high-strength wear-resistant grizzly bars, it can withstand the impact of large bulk materials (maximum feed size up to 1000mm) without deformation or damage, realizing efficient separation of large impurities and qualified materials.
2. Efficient Anti-blocking: Adopts high-frequency vibration design, which can make materials jump and flow quickly on the screen surface, effectively preventing screen blockage caused by wet or sticky materials, and ensuring continuous operation.

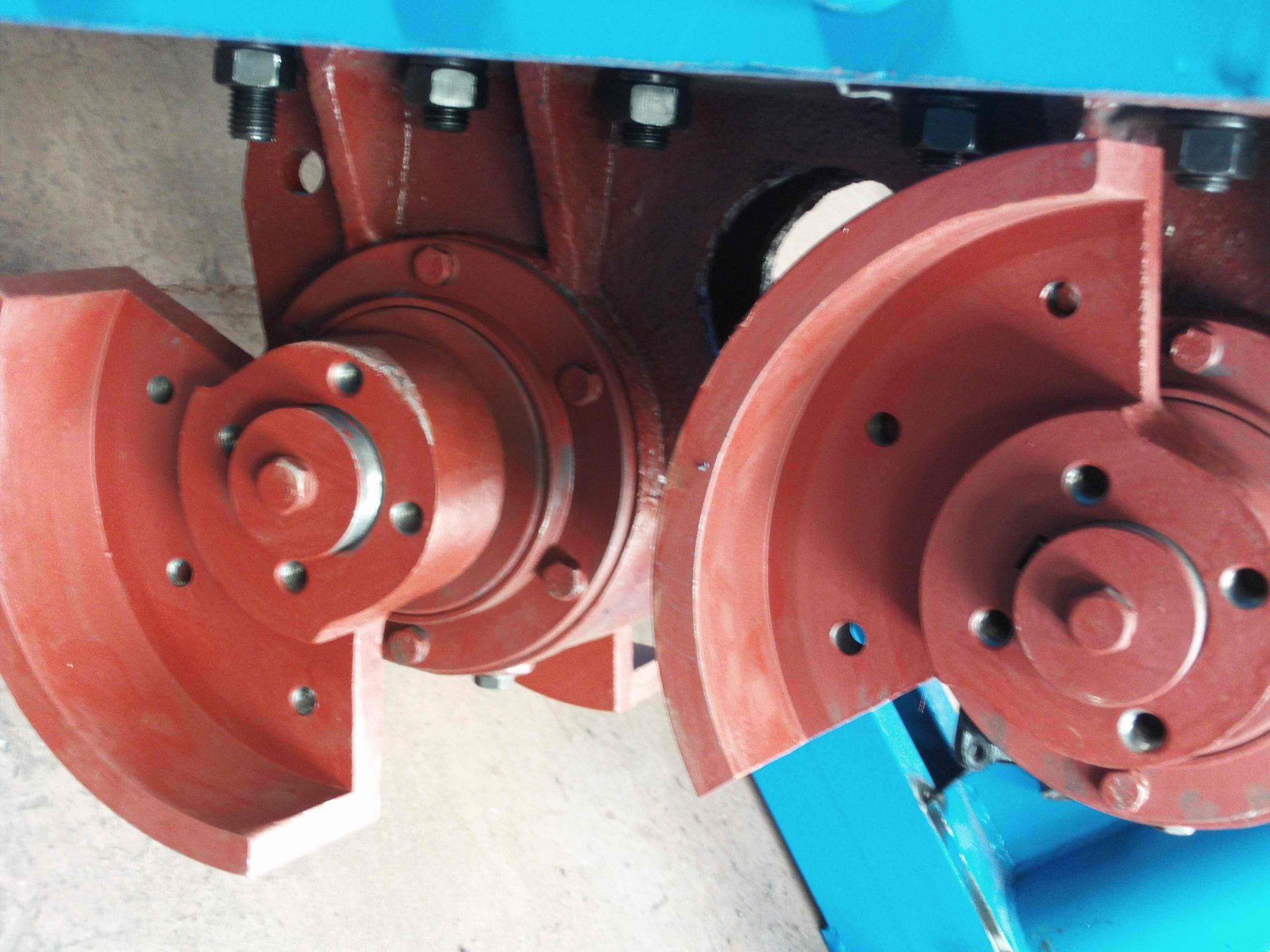

3. Sturdy & Durable Structure: The screen box is made of thickened steel plate, combined with high-quality vibration exciter and shock-absorbing spring system, which enhances the equipment's load-bearing capacity and service life, adapting to long-term heavy-load operation in harsh industrial environments.
4. Easy Maintenance & Operation: Modular design of grizzly bars allows quick disassembly and replacement; the integrated control system simplifies operation, and daily maintenance only requires regular inspection of the exciter, lubrication system and grizzly bar gaps.
5. Strong Adaptability: Customizable grizzly bar spacing, screen surface size, vibration frequency and installation angle to meet the scalping needs of different materials and working conditions, suitable for both fixed and mobile production lines.
Technical Parameter
| Model | Deck | Feed Size (mm) | Capacity (t/h) | Motor Power (kW) | Amplitude (mm) | Inclination Angle (°) | Overall Weight (kg) |
| 1020 | Single deck | ≤400 | 80–180 | 2×3.0 | 6–10 | 10–15 | 4200 |
| 1225 | Single deck | ≤500 | 120–260 | 2×4.0 | 6–10 | 10–15 | 5800 |
| 1530 | Single deck | ≤630 | 180–380 | 2×5.5 | 6–12 | 10–15 | 7500 |
| 1836 | Single deck | ≤800 | 250–520 | 2×7.5 | 8–12 | 10–15 | 9900 |
| 2040 | Single deck | ≤900 | 320–650 | 2×11 | 8–14 | 10–15 | 12800 |
| 2442 | Single deck | ≤1000 | 450–850 | 2×15 | 8–14 | 10–15 | 16500 |
