1. Product Overview

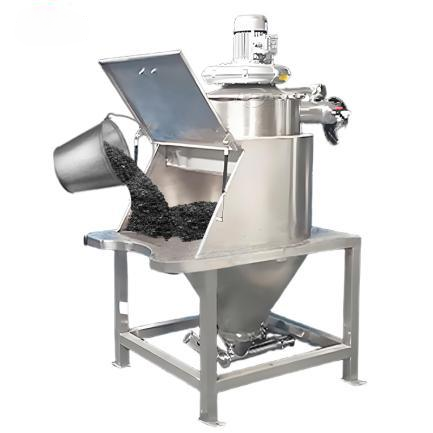

The Dust-free Feeding Station (also known as Dust-free Unpacking Station, Bulk Bag Dust-free Feeding Station) is a professional front-end feeding equipment designed for the fully enclosed, dust-free unpacking and feeding of powder, granular, and flaky materials. It is the core supporting equipment for vacuum conveying systems, mixing systems, and packaging production lines, which completely solves the industry pain points of dust overflow, material loss, cross-contamination, and high labor intensity during manual unpacking and feeding of bagged/ton bagged materials.

This equipment can realize fully automatic or semi-automatic unpacking, feeding, screening, and conveying of 5kg-50kg small bags and 500kg-2000kg ton bags, with a built-in high-efficiency dust removal system, which can achieve zero dust overflow during the entire feeding process, fully meet the requirements of GMP, FDA, and food safety production specifications, and is widely used in pharmaceutical, food, chemical, lithium battery, building materials, feed and other industries with high cleanliness requirements.

2. Working Principle

The core working process of the Dust-free Feeding Station is divided into 4 stages, which can be linked with the vacuum feeding machine to realize fully automated unmanned operation:

1. Material Loading & Unpacking Stage: The bagged/ton bagged material is lifted to the feeding port of the equipment by a forklift/crane/electric hoist, and the bag opening is automatically cut by the built-in bag cutting device (or manually opened in the closed operating cabin), and the material falls into the feeding hopper by gravity.

2. Dust Removal & Sealing Stage: During the material falling process, the built-in pulse dust removal system is automatically activated, and the negative pressure generated by the fan quickly absorbs the floating dust in the cabin into the dust removal filter element, realizing gas-solid separation. The clean air is discharged after filtration, and the dust is trapped in the filter element and automatically falls back into the feeding hopper by pulse back-blowing, achieving zero dust overflow and zero material loss.

3. Screening & Conveying Stage: The material falls into the built-in vibrating screen/rotary screen through the feeding hopper, and the agglomerated materials and impurities are screened out. The qualified materials are directly sent to the vacuum feeding machine, mixer, storage silo or other target equipment through the discharge port, realizing continuous and stable feeding.

4. Waste Bag Collection Stage: The empty bags after unpacking are automatically compressed and collected by the built-in bag pressing device (or manually taken out from the sealed cabin), avoiding the secondary pollution of the workshop environment caused by the residual material on the waste bags.

3. Core Performance Features

1. Fully Enclosed Structure, Zero Dust OverflowThe entire unpacking and feeding process is completed in a closed cabin, with a built-in high-efficiency pulse dust removal system, which can achieve zero dust overflow during the feeding process, completely eliminate workshop dust pollution, protect the health of operators, and fully meet the requirements of national occupational health and safety production standards.

2. High Feeding Efficiency, Zero Material LossThe equipment can realize continuous and stable feeding, with a feeding capacity of 0.5-30t/h, adapting to different production capacity requirements. The pulse back-blowing dust removal system can completely recover the floating dust, with a material recovery rate of more than 99.9%, no material loss, especially suitable for unpacking and feeding of high-value powder materials.

3. Modular Design, Easy to Disassemble, Assemble and CleanThe equipment adopts a modular structure design, the feeding cabin, dust removal system, screening device and discharge port can be quickly disassembled and assembled, no dead angle design, easy to clean and disinfect, fully compliant with GMP and FDA clean production standards, suitable for pharmaceutical and food industries with high cleaning requirements.

4. Strong Adaptability, Customizable for Multi-Working ConditionsIt can adapt to 5kg-50kg small woven bags, aluminum foil bags, paper bags, and 500kg-2000kg ton bags, and can be customized with automatic bag cutting, automatic bag pressing, magnetic separation, metal detection, vibrating screening and other functions according to actual process requirements. It can be directly linked with vacuum feeding machines, mixers, packaging machines and other equipment to realize fully automated production.

5. Safe & Reliable, Low Maintenance CostThe equipment is equipped with safety interlock devices, overload protection devices, and fault alarm systems to ensure the safety of operators and equipment during operation. The core components are made of high-quality 304/316L stainless steel, with a long service life, few wearing parts, and extremely low failure rate, greatly reducing the later operation and maintenance costs.

6. Intelligent Control, Unmanned OperationStandard equipped with PLC intelligent control system and touch screen human-machine interface, which can realize automatic start/stop of feeding cycle, automatic pulse back-blowing, fault automatic alarm, remote monitoring and other functions. It can be directly connected to the workshop DCS system, and can be linked with the vacuum feeding machine to realize fully automated unmanned feeding operation, greatly reducing labor costs and improving production efficiency.

4. Technical Parameters

5. Applicable Scenarios & Industries

5.1 Applicable Materials

• Powder materials: Flour, starch, milk powder, coffee powder, seasoning powder, pharmaceutical API, intermediates, pesticide powder, talc, calcium carbonate, graphite powder, lithium battery cathode/anode materials, pigments, dyes, etc.

• Granular materials: Plastic granules, rubber granules, feed pellets, grains, seeds, small granular chemical raw materials, food granules, etc.

• Special materials: Flammable and explosive powder, corrosive materials, high temperature materials, hygroscopic materials, high-value ultra-fine powder, etc. (corresponding models need to be customized)

5.2 Core Application Industries

• Pharmaceutical Industry: Unpacking and feeding of API, intermediates, traditional Chinese medicine powder, preparation powder, compliant with GMP specifications, suitable for matching with vacuum feeding machines, mixers, granulators, packaging machines and other equipment.

• Food Industry: Unpacking and feeding of flour, starch, milk powder, seasoning powder, food additives, with food-grade 304/316L stainless steel material, no cross-contamination, fully compliant with food safety production standards.

• Chemical Industry: Unpacking and feeding of chemical raw materials, pigments, dyes, auxiliaries, pesticide powder, explosion-proof and corrosion-resistant models can be customized, suitable for matching with reactors, mixers, packaging machines.

• Lithium Battery New Energy Industry: Unpacking and feeding of ultra-fine powder such as cathode/anode materials, conductive agents, binders, eliminating metal impurity pollution, suitable for the whole process of battery material production.

• Building Materials/Metallurgy Industry: Unpacking and feeding of talc, calcium carbonate, quartz sand, metal powder, refractory materials, suitable for large-capacity and continuous production requirements.

• Feed/Agriculture Industry: Unpacking and feeding of feed raw materials, additives, grains, seeds, no dust pollution, suitable for automated production lines of feed mills and grain and oil processing plants.

6. Customization Options

We can provide a full-process customized solution according to your actual working conditions and process requirements. The core optional configurations include:

1. Material customization: Food-grade 304/316L stainless steel, carbon steel lined with PTFE, Hastelloy and other corrosion-resistant materials, GMP-grade mirror polishing.

2. Explosion-proof customization: Whole machine explosion-proof type, suitable for unpacking and feeding of flammable and explosive materials, compliant with national explosion-proof standards.

3. Function customization: Automatic bag cutting device, automatic bag pressing and collection device, magnetic separation/metal detection device, vibrating/rotary screening device, weighing and batching system.

4. Control system customization: Touch screen HMI, PLC intelligent control, remote DCS connection, fault early warning system, unmanned automatic operation system.

5. Special working condition customization: High-temperature type, low-temperature type, anti-static type, mobile type, closed cabin with gloves operation type.

6. Supporting system customization: Can be directly linked with vacuum feeding machine, mixer, storage silo, packaging machine and other equipment, providing a complete set of automated feeding and conveying solutions.
